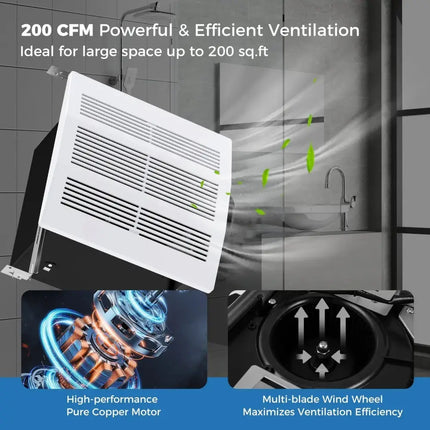

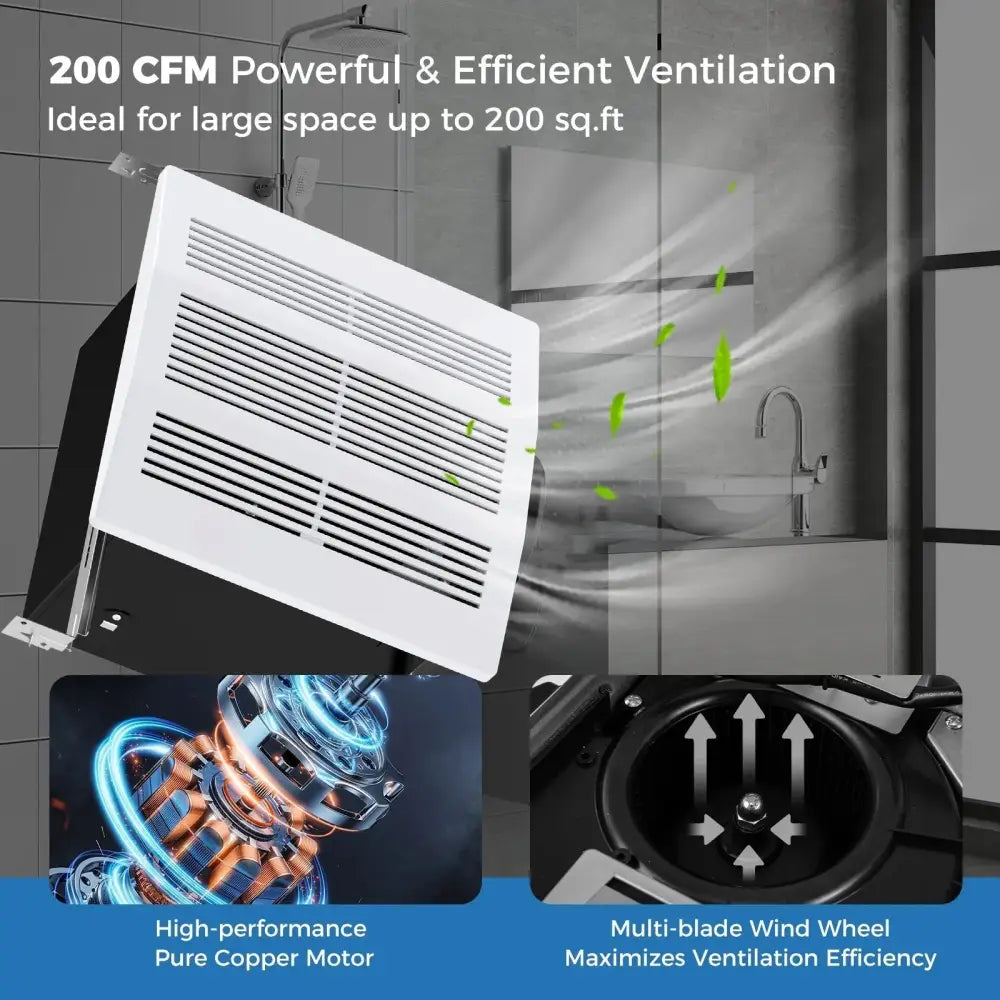

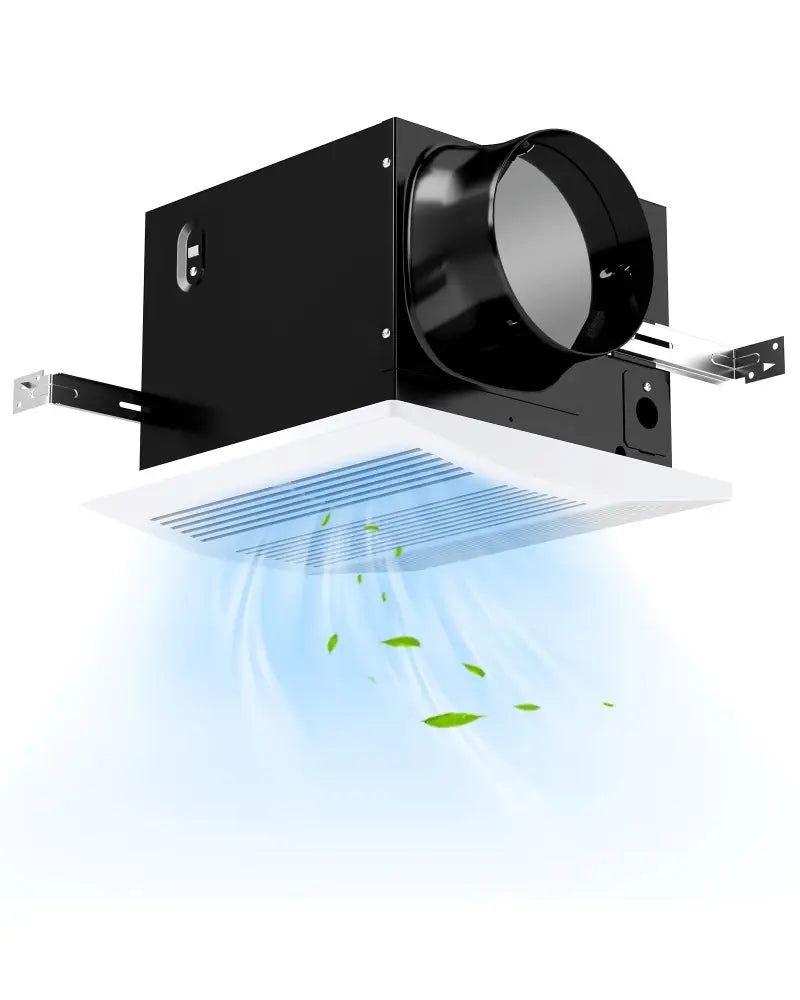

â— 200 CFM large airflow capacity for enclosed room up to 200 sq. ft
â— 2 sones low noise won't disrupt the tranquility of your bathroom
â— Spraying metal housing for longevity and continued performance
â— Multi-blade wind wheel maximizes ventilation efficiency
â— Advanced check valve to avoid backflow of dirty air
â— 2 ways to install: direct joist mounting or suspension bracket mounting

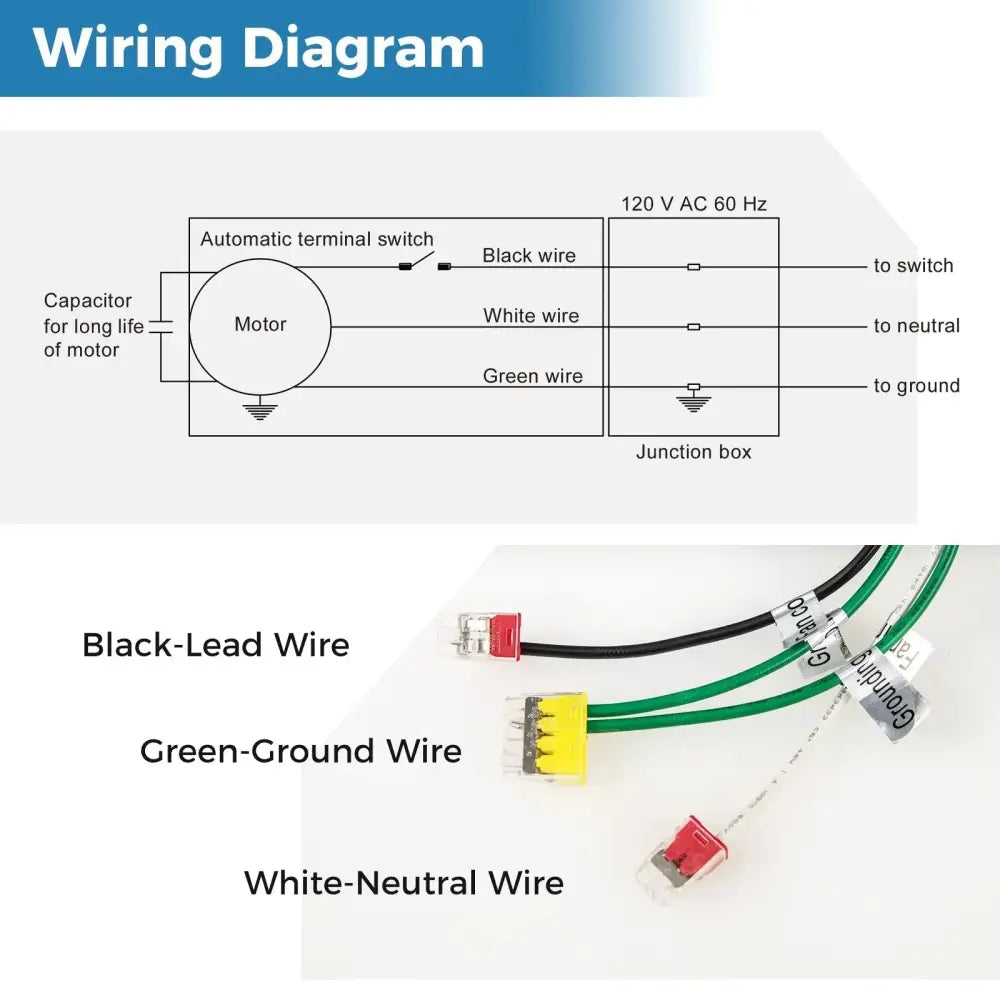

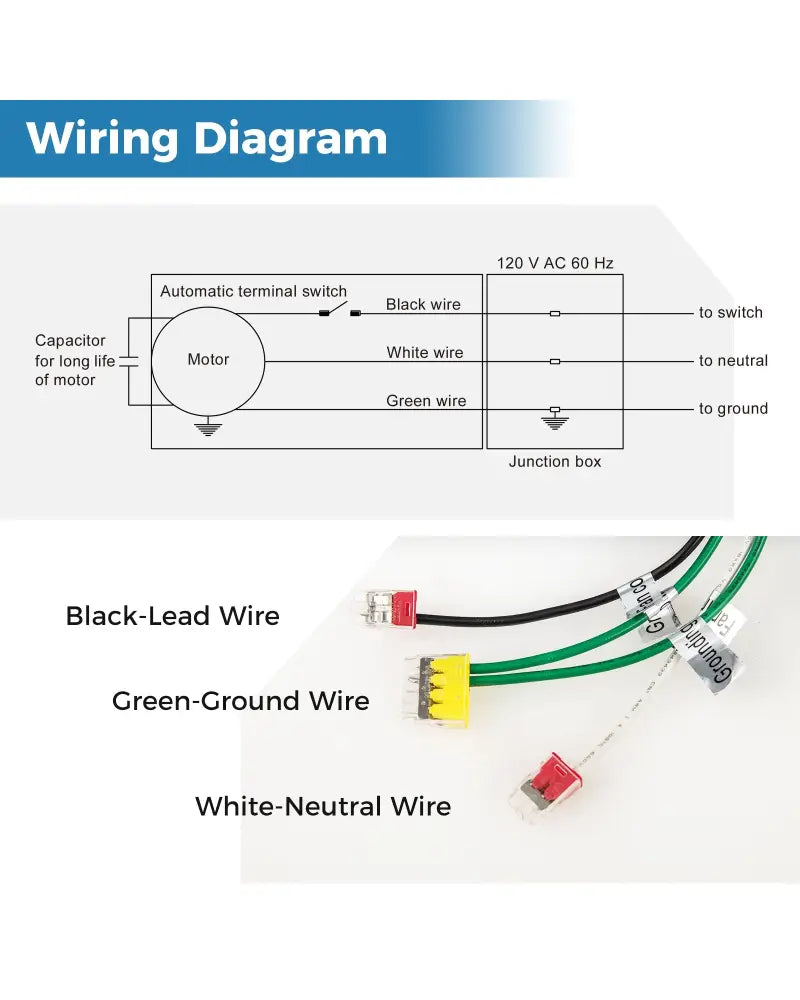

â— Wiring diagram: black-lead wire green-ground wire white-neutral wire

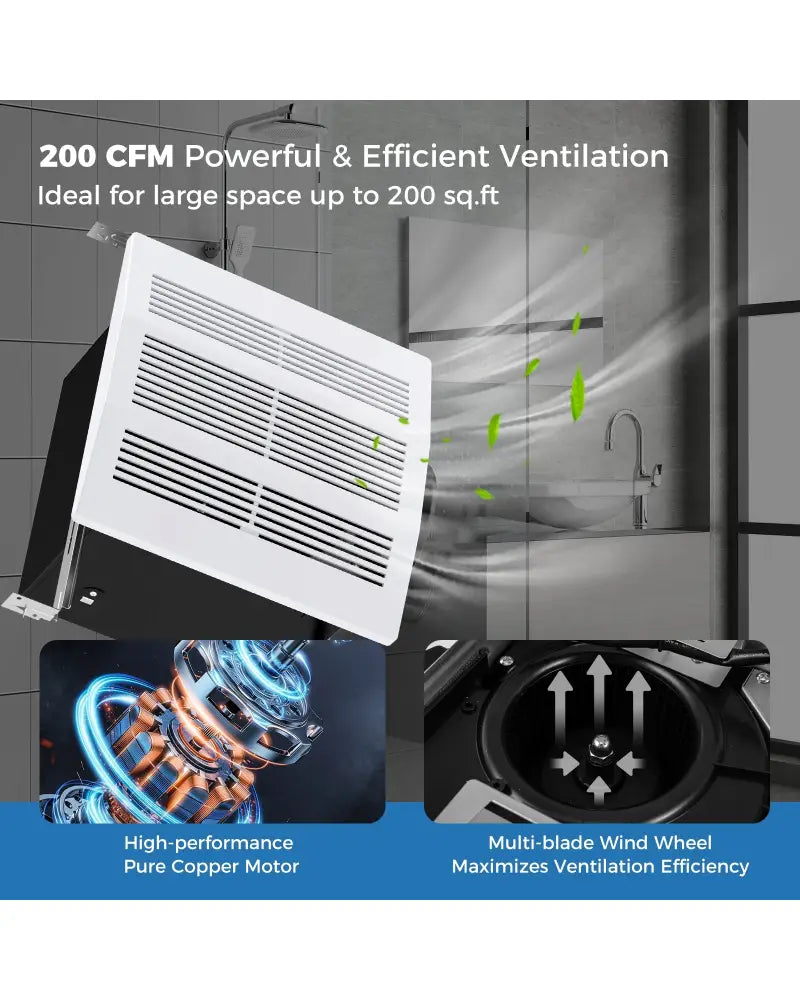

â— Powerful and Efficient Ventilation: With a 200 CFM strong airflow capacity and a high-performance pure copper motor this ventilation fan efficiently reduces humidity stuffiness and unpleasant smells in the bathroom. It is ideal for large space up to 200 sq.ft.
â— Quiet Operation: This ceiling mounted exhaust fan works quietly at 2 sones which provides a peaceful bathroom environment. It is perfect for ensuring your early morning or late-night routines are undisturbed by noise.

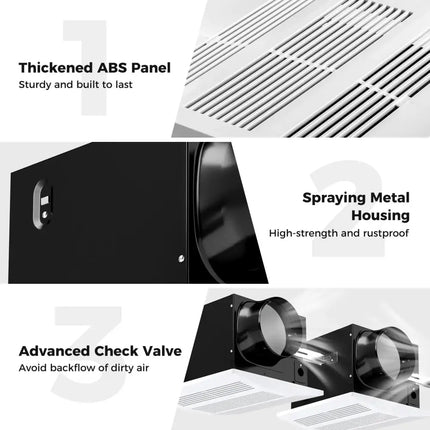

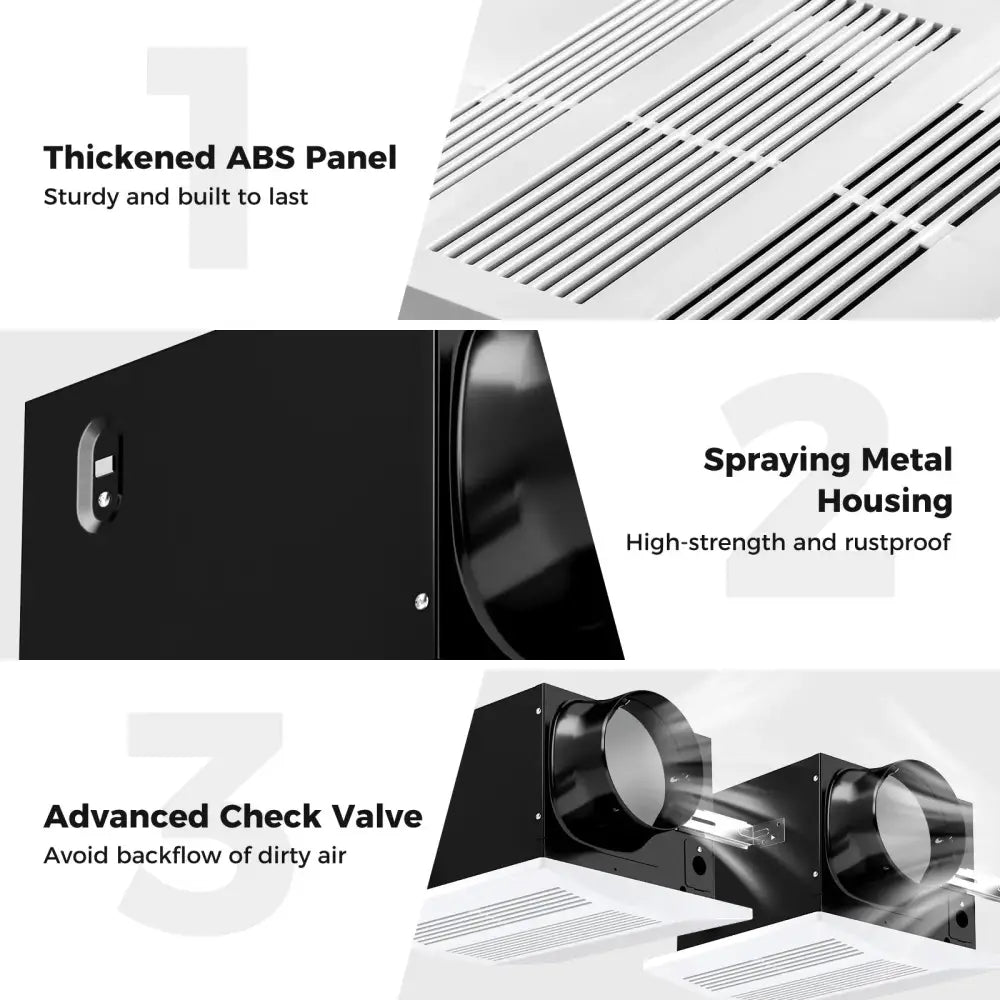

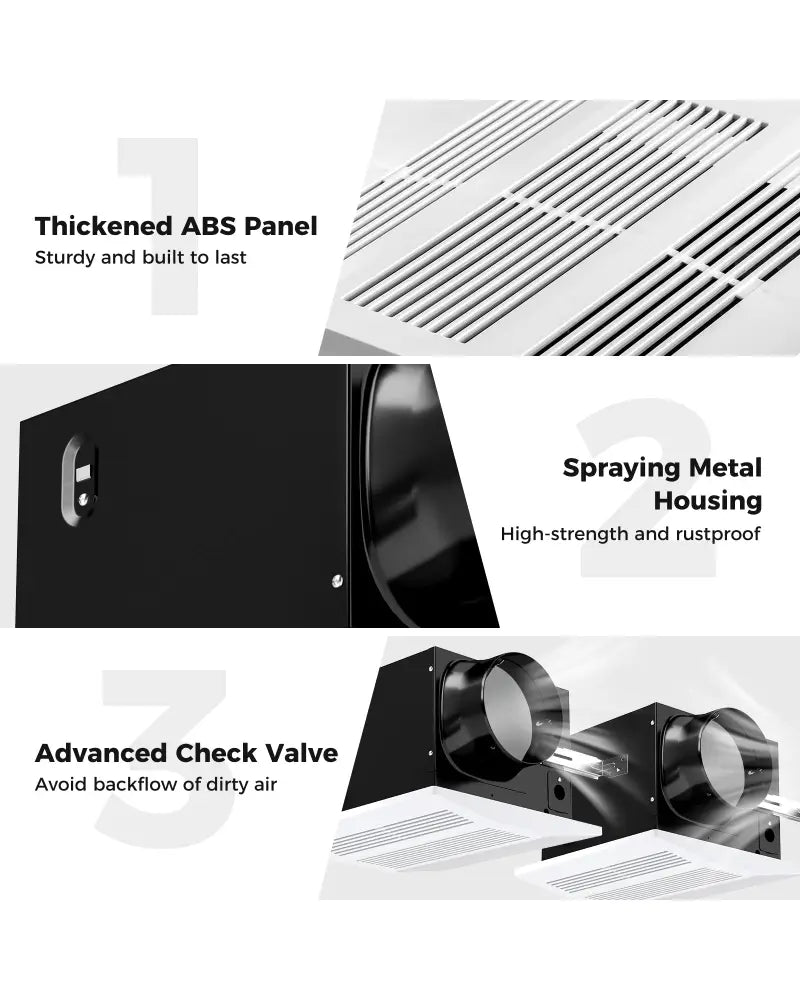

â— Robust Construction: The fan grille is made from thickened ABS panel that is sturdy and built to last. In addition the high-strength and rustproof spraying metal housing makes the ventilation fan operate flawlessly for years.
â— Advanced Airflow Control: This bathroom ventilation fan is equipped with a check valve which helps to prevent dirty airflow from entering and maintain fresh air in your bathroom.
â— 2 Installation Methods: The bath vent fan comes with 3 suspension brackets mounting screws and detailed instructions for easy direct joist mounting or suspension bracket mounting. The suggested ceiling opening size is 10.4" x 10.4" x 8.3"/26.5 x 26.5 x 21 cm (L x W x H).
| Color of Fan Grille |
White |
| Material |
Metal ABS Copper Motor |

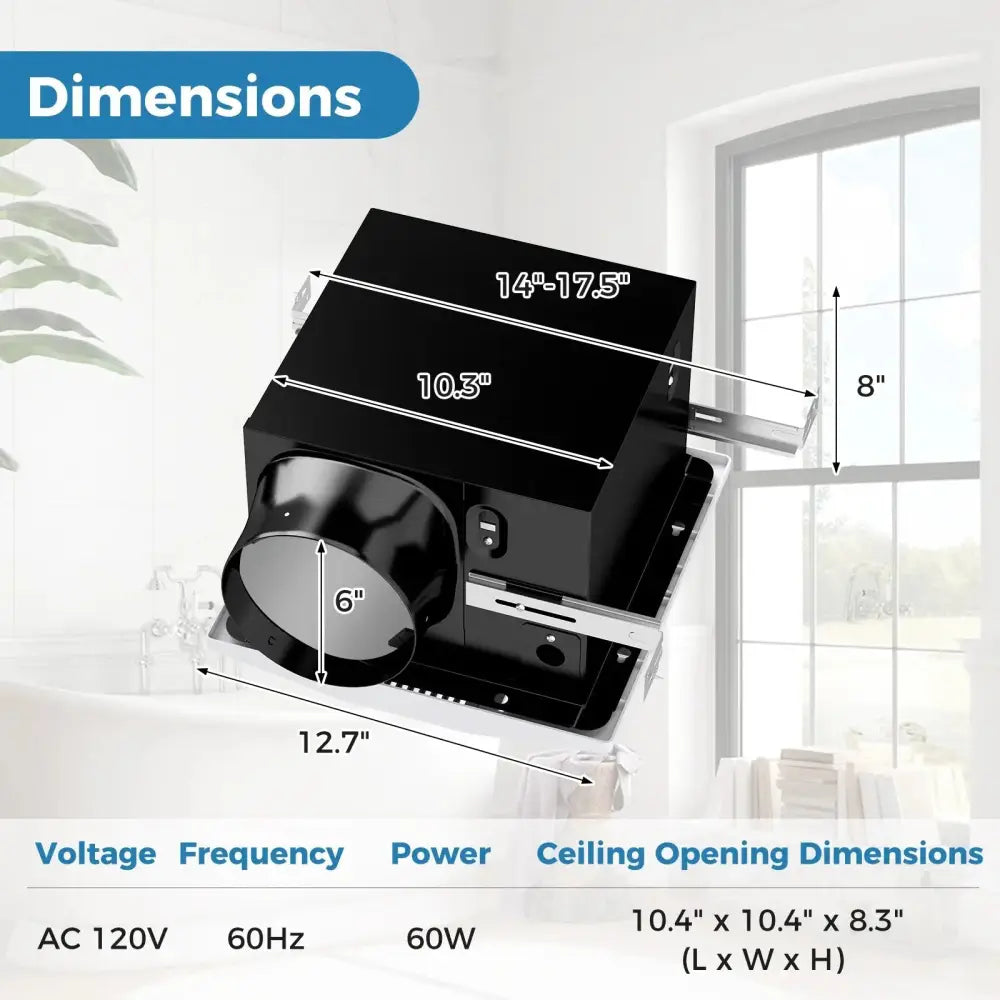

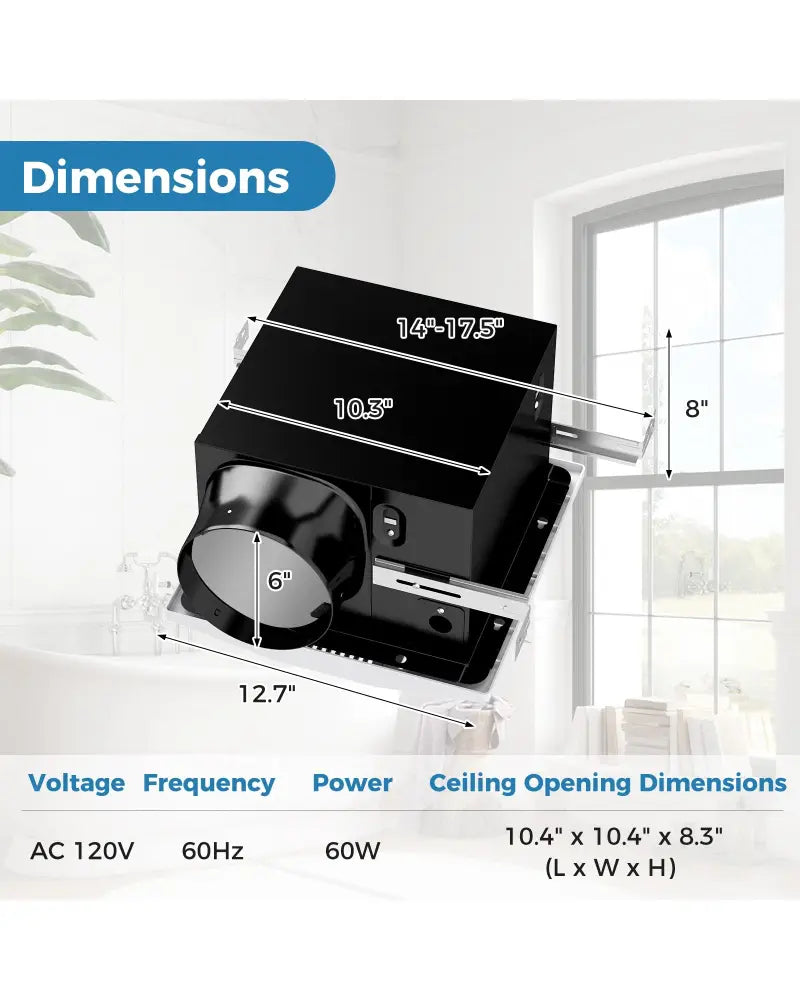

| Overall Dimensions |
14.3" x 12.7" x 9" |
| Fan Housing Dimensions |
10.3" x 10.3" x 8" |
| Fan Grille Dimensions |
12.7" x 12.7" |
| Duct Diameter |
6" |
| Bracket Length |
14" |
| Ceiling Opening Dimensions |
10.4" x 10.4" x 8.3" |
| Voltage |
AC 120V |
| Frequency |
60Hz |
| Power |
60W |
| Airflow |
200 CFM |
| Motor Speed |
700 RPM |
| Sound Output |
2 Sones |
| Coverage |
200 Sq.Ft |
| Net Weight |
10.5 lbs |
| Box Qty | 1 |
| Box Qty |
1(May vary by batch) |
