Powerful whole-home cooling and heating for 2 zones23 SEER2 and inverter technology ensure high energy efficiency
Outdoor unit with chassis heating for reliable cold-weather operation
Choose from 7 operating modes and 8 fan speeds Easily control from your phone remote or voice demands
24-hour timer for easy daily use and smart energy saving
Low noise operation ensures a peaceful environment
Self-clean function supports fresher airflow over time
Removable & washable filters for simple cleaning
Child lock prevents accidental setting changes
4D auto swing offers more even air distribution

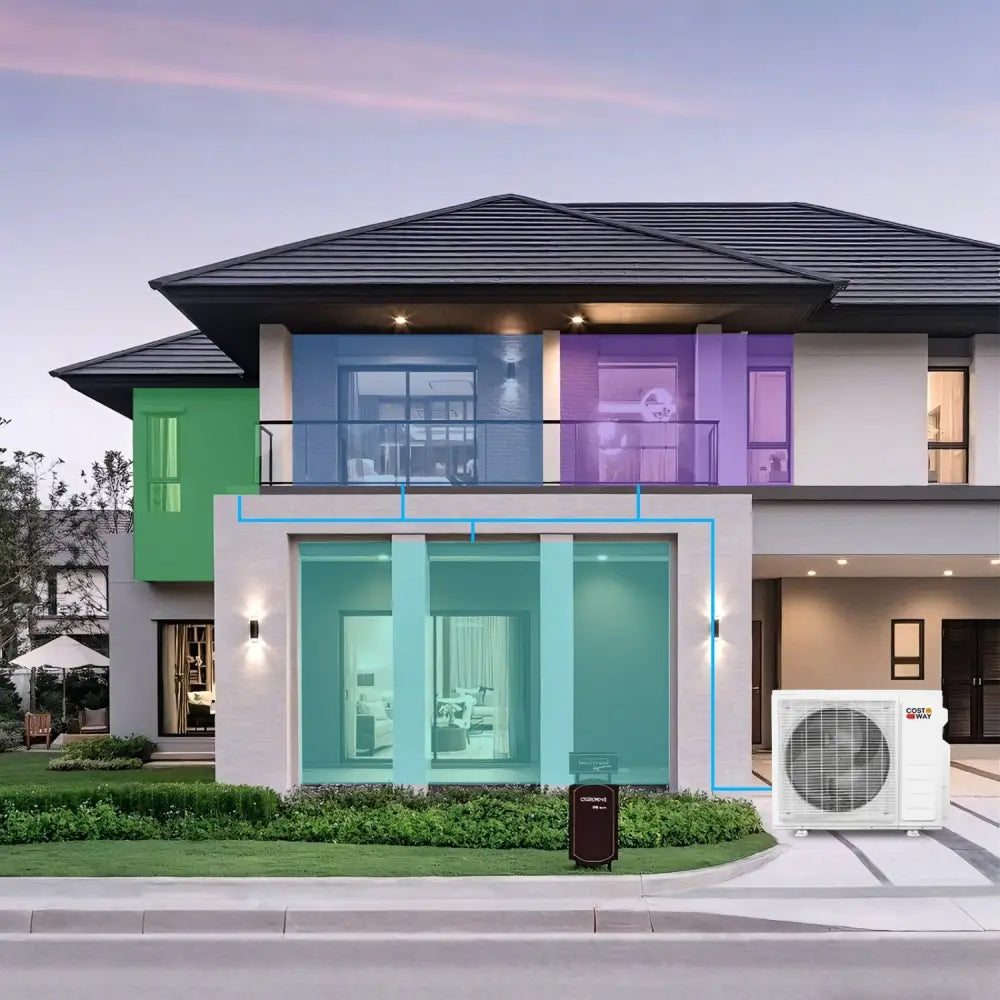

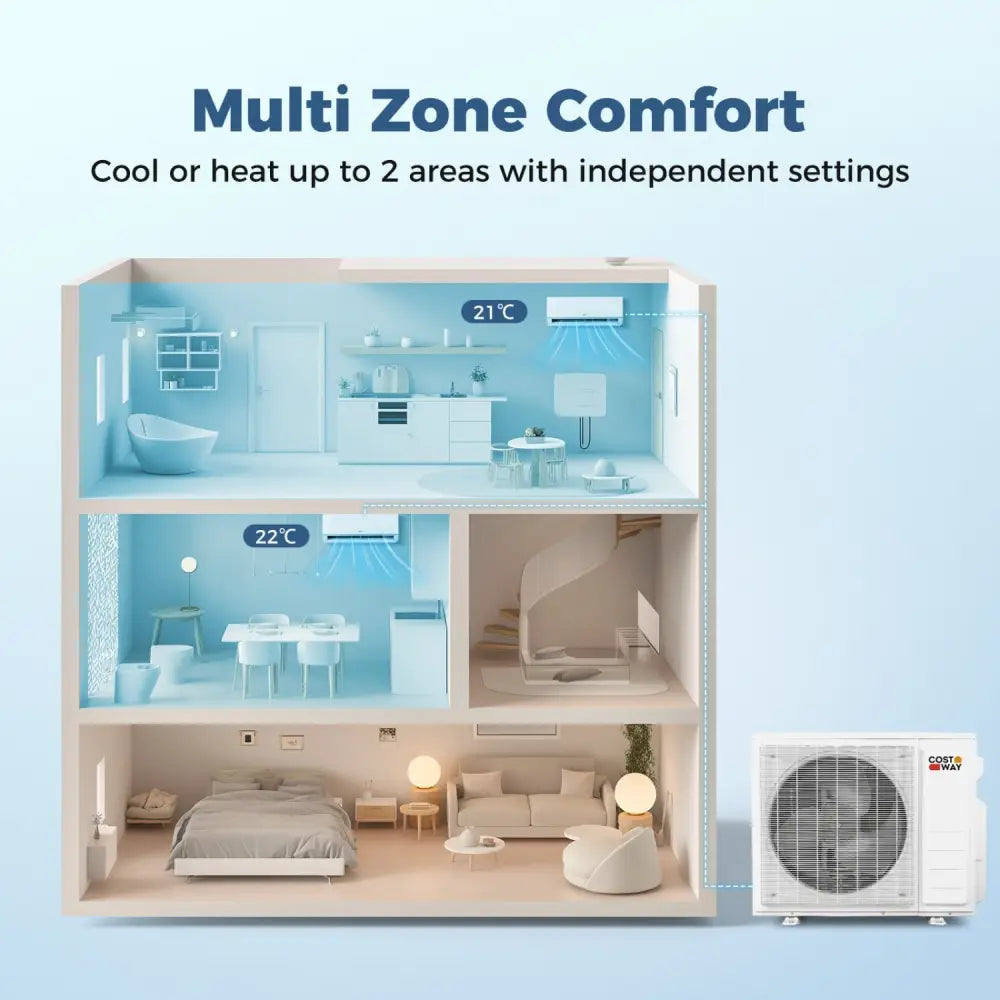

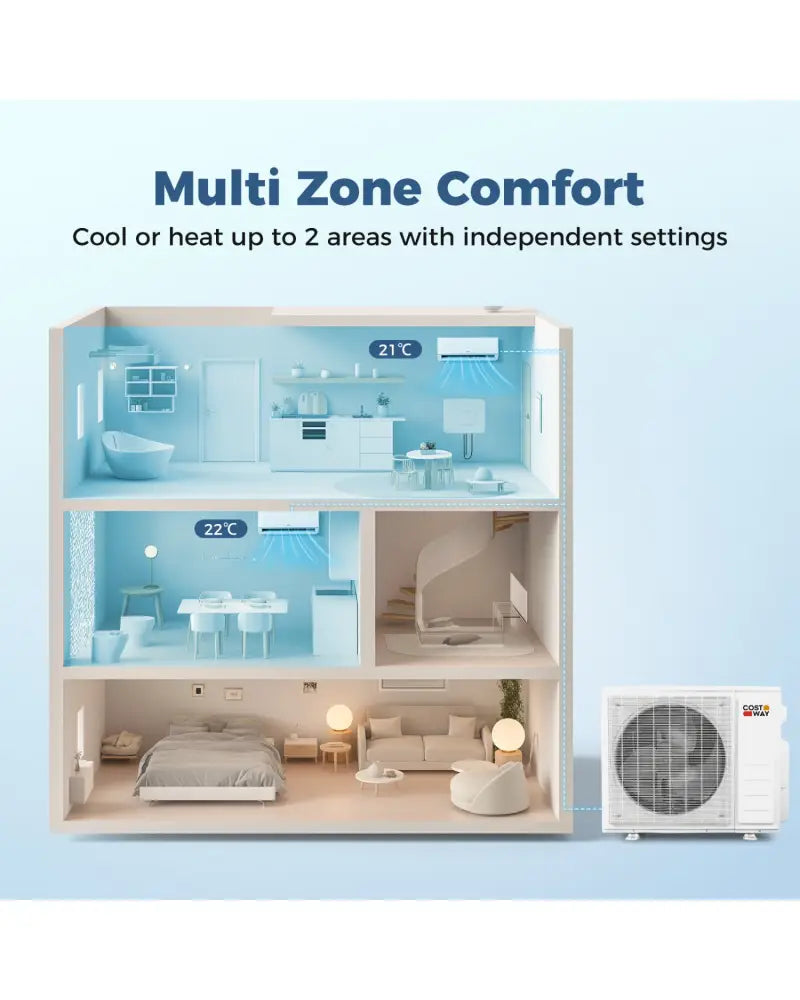

Multi Zone Comfort & Gentle Airflow: This 2 zone 20000 BTU mini split ac/heating system provides room-by-room comfort for larger homes. Dual/tri/quad zone design lets you tailor temperatures where you need them. The 4D swing spreads air more evenly while the golf ball dimples design offers a gentle breeze and prevents direct blowing.

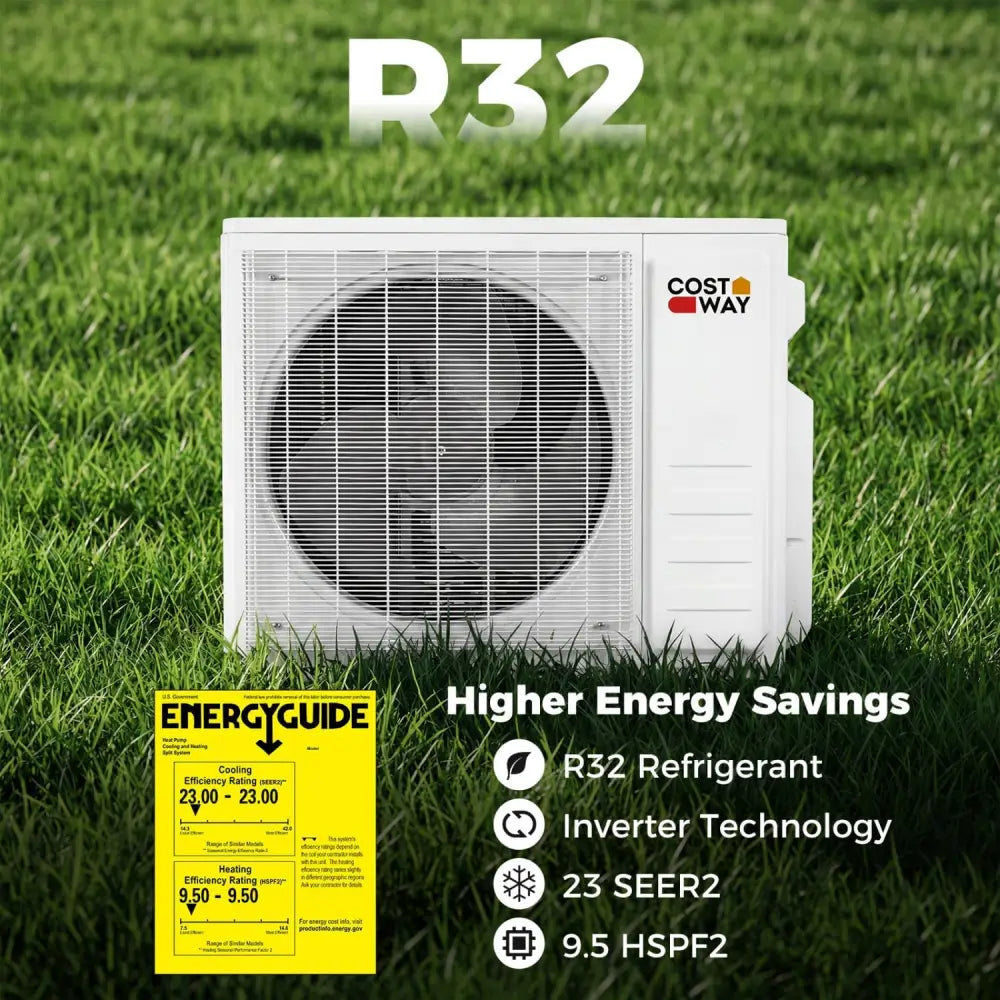

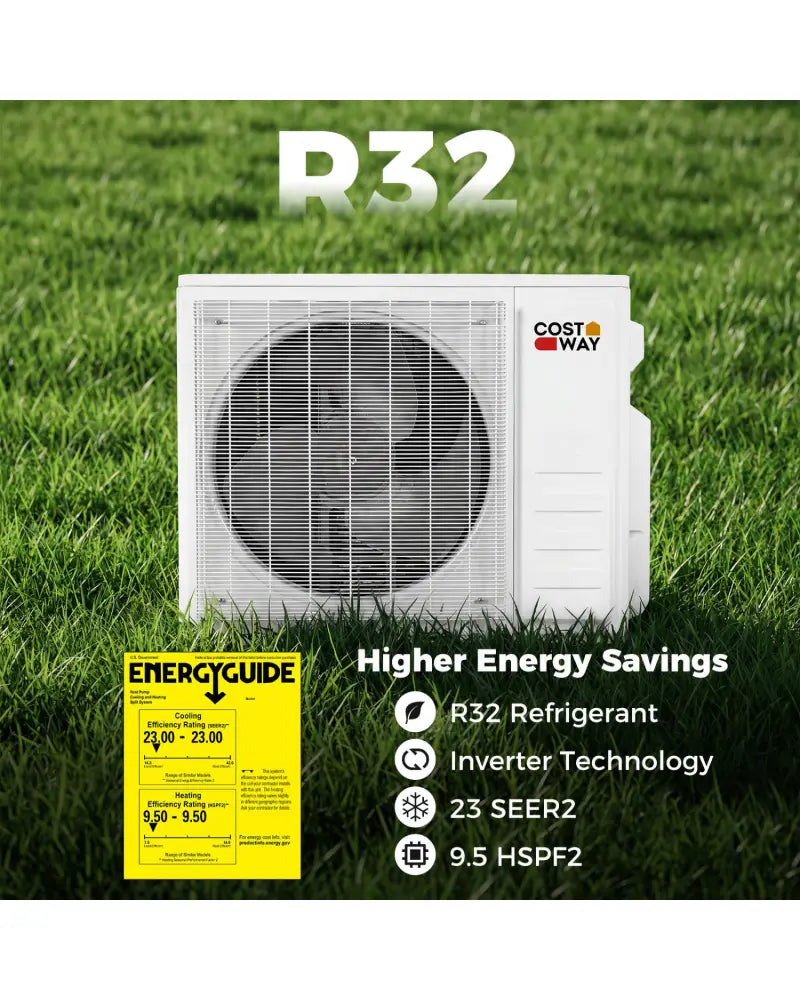

Higher Energy Savings: With a 23 SEER2 rating this mini split ac unit is built to offer powerful heating and cooling with energy-smart control. The advanced inverter technology helps reduce energy waste while keeping set temperatures stable.

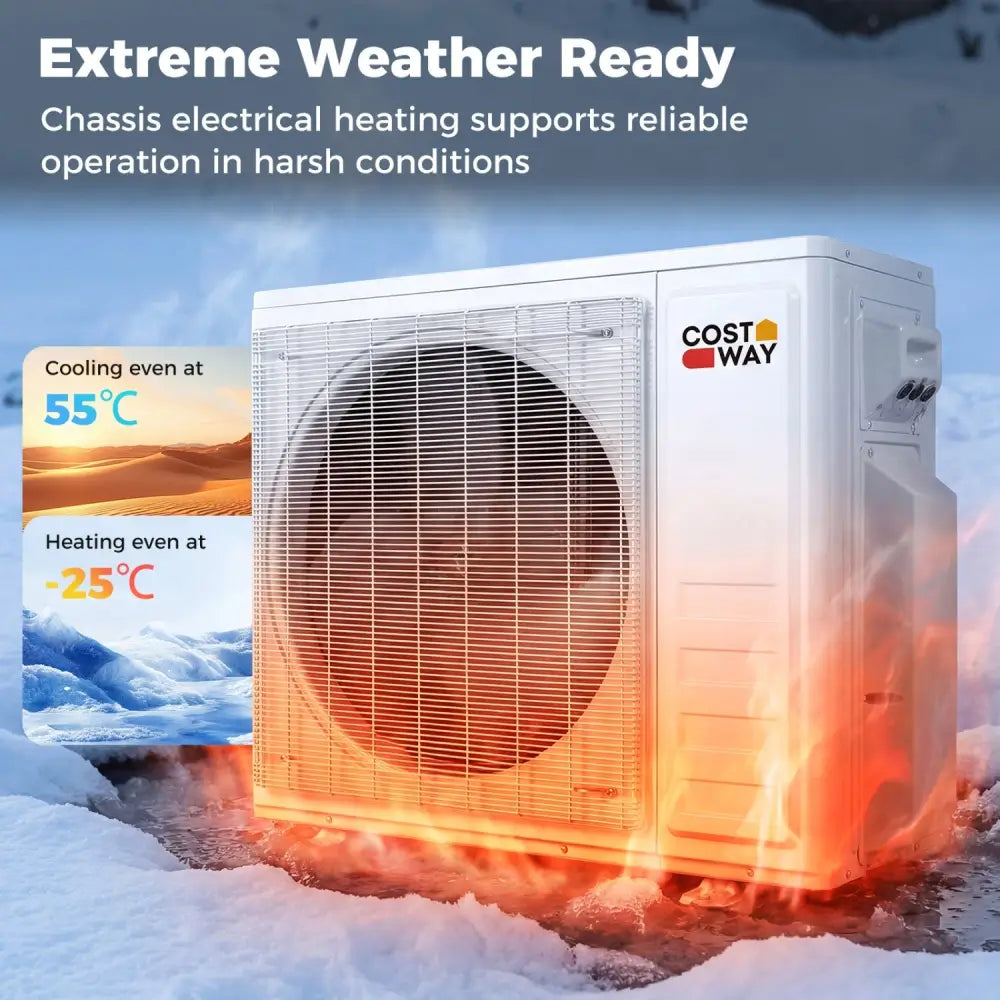

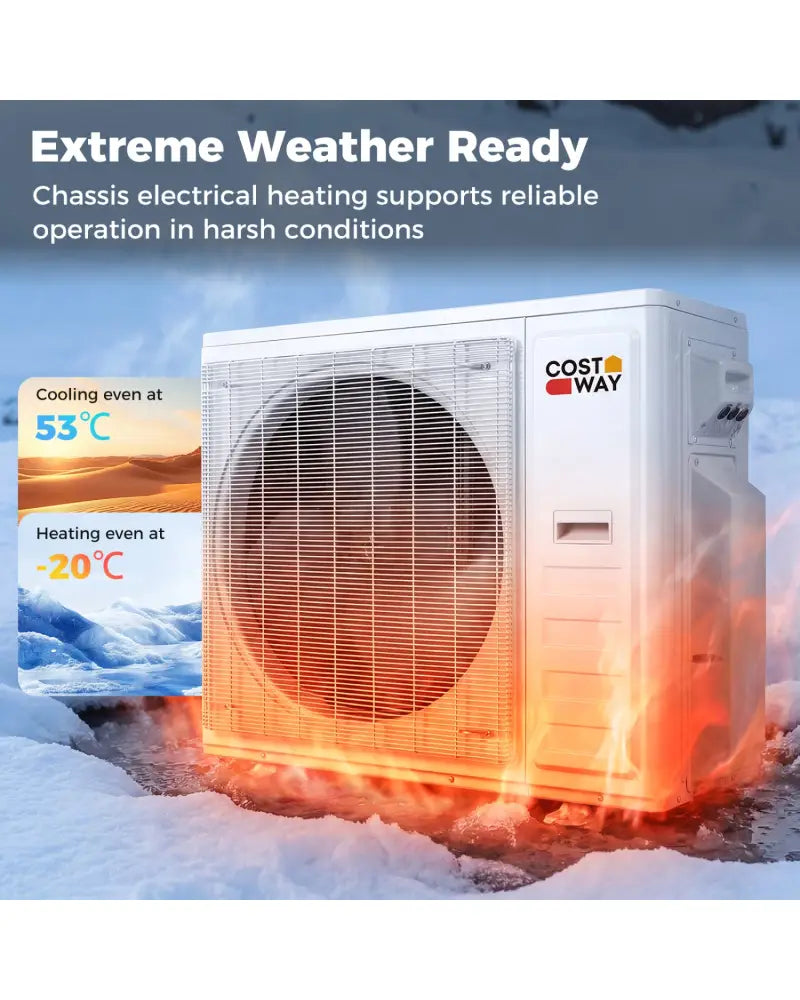

Extreme Weather Ready: The outdoor unit is equipped with chassis electrical heating which supports reliable operation in harsh conditions cooling even at 131„‰ and heating even at -13„‰.

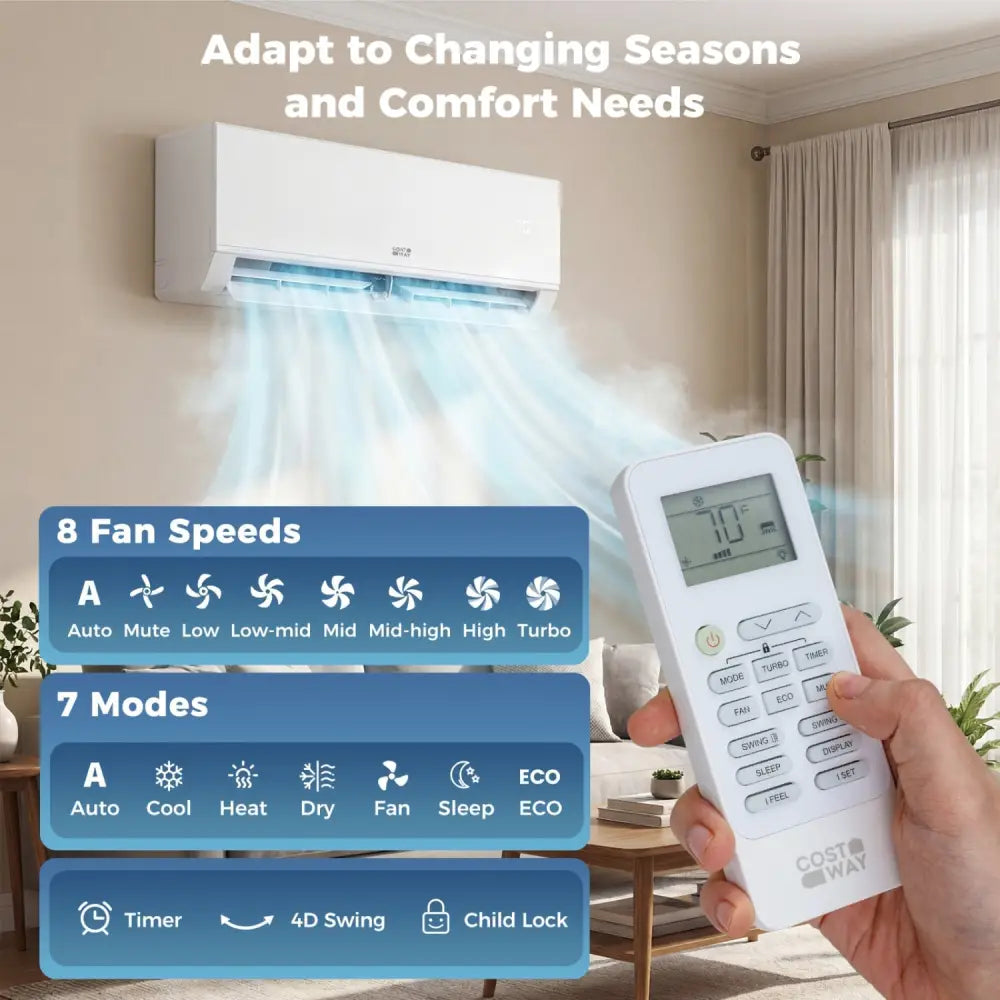

Smart Control & Modes: This wifi enabled mini split air conditioner and heater works with Alexa and Google assistant plus a remote control for quick access. 7 modes (auto cool heat dry fan ECO sleep) 8 fan speeds (auto mute low low-mid mid mid-high high turbo) 24-hour timer and child lock extend comfort to daily use.
Low Noise & Easy Maintenance: This multi zone ac with heat pump operates quietly creating minimal noise as low as 28 dB during operation that enables you to enjoy all-day comfort without distractions. Maintenance is a breeze thanks to the self-clean function and washable filters. Note: Professional licensed HVAC technician installation is recommended.
| Color |
White |
| Material |
Cold-rolled Steel Sheet Copper Aluminum |

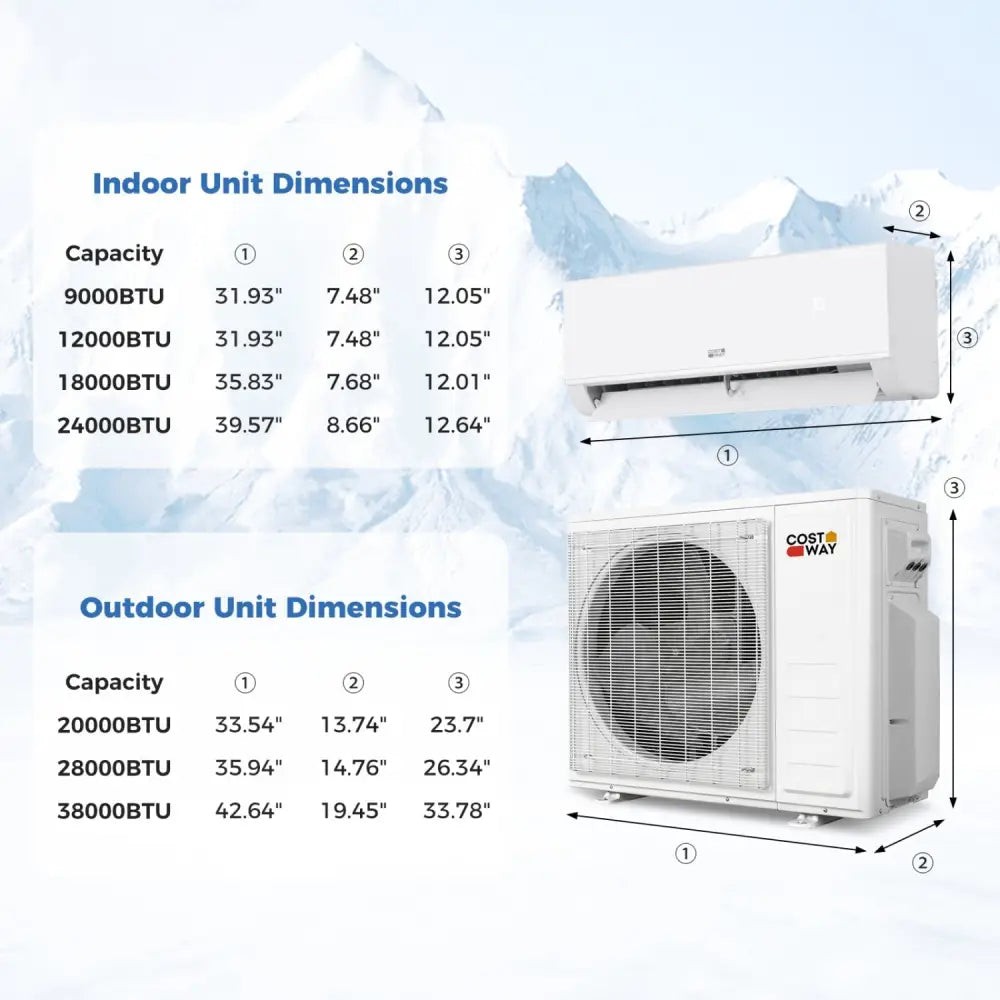

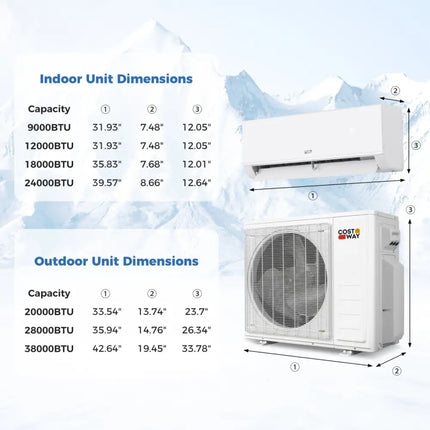

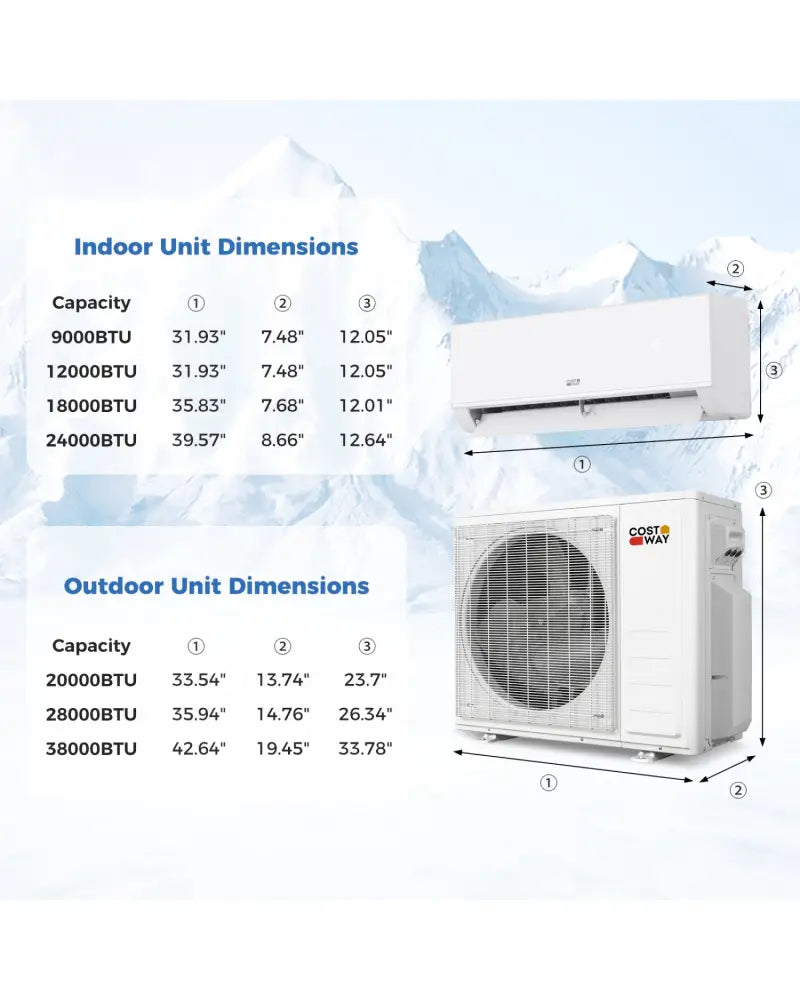

| Indoor Unit Dimensions |
. |
| 9K |
31.93 x 7.48 x 12.05 |
| 12K |
31.93 x 7.48 x 12.05 |
| 18K |
35.83" x 7.68" x 12.01" |
| 24K |
39.57" x 8.66" x 12.64" |
| Outdoor Unit Dimensions |
. |
| 20K |
33.54" x 13.74" x 23.7" |
| 28K |
35.94" x 14.76" x 26.34" |
| 35K |
42.64" x 19.45" x 33.78" |
| Multi Zone Combination |
2 |
| Voltage |
208/230V |
| Frequency |
60Hz |
| Temperature Setting Range |
60„‰~88„‰ |
| Refrigerant |
R32 |
| Indoor Unit Noise Level |
28 dB |
| Max Remote Control Distance |
39.5 ft |
| Coverage Area-9K |
450 Sq.Ft |
| Coverage Area-12K |
750 Sq.Ft |
| Coverage Area-18K |
1250 Sq.Ft |
| Coverage Area-24K |
1500 Sq.Ft |
| Dehumidification Capacity-9K |
66 Pints/Day |
| Dehumidification Capacity-12K |
81.2 Pints/Day |
| Dehumidification Capacity-18K |
111.6 Pints/Day |
| Dehumidification Capacity-24K |
131.9 Pints/Day |
| Maximum Air Flow Volume-9K |
335 CFM/554 m³/h |
| Maximum Air Flow Volume-12K |
342 CFM/554 m³/h |
| Maximum Air Flow Volume-18K |
617 CFM/554 m³/h |
| Maximum Air Flow Volume-24K |
847 CFM/554 m³/h |
| 20k SEER2 |
23 |
| 28K SEER2 |
20 |
| 38K SEER2 |
20 |
| 20K HSPF2 |
9.5 |
| 28K HSPF2 |
9.5 |
| 38K HSPF2 |
9.5 |
| Diameter of Liquid Pipe |
1/4" |
| Diameter of Gas Pipe-9K |
3/8" |
| Diameter of Gas Pipe-12K |
3/8" |
| Diameter of Gas Pipe-18K |
3/8" |
| Diameter of Gas Pipe-24K |
1/2" |
| Box Qty |
4 |

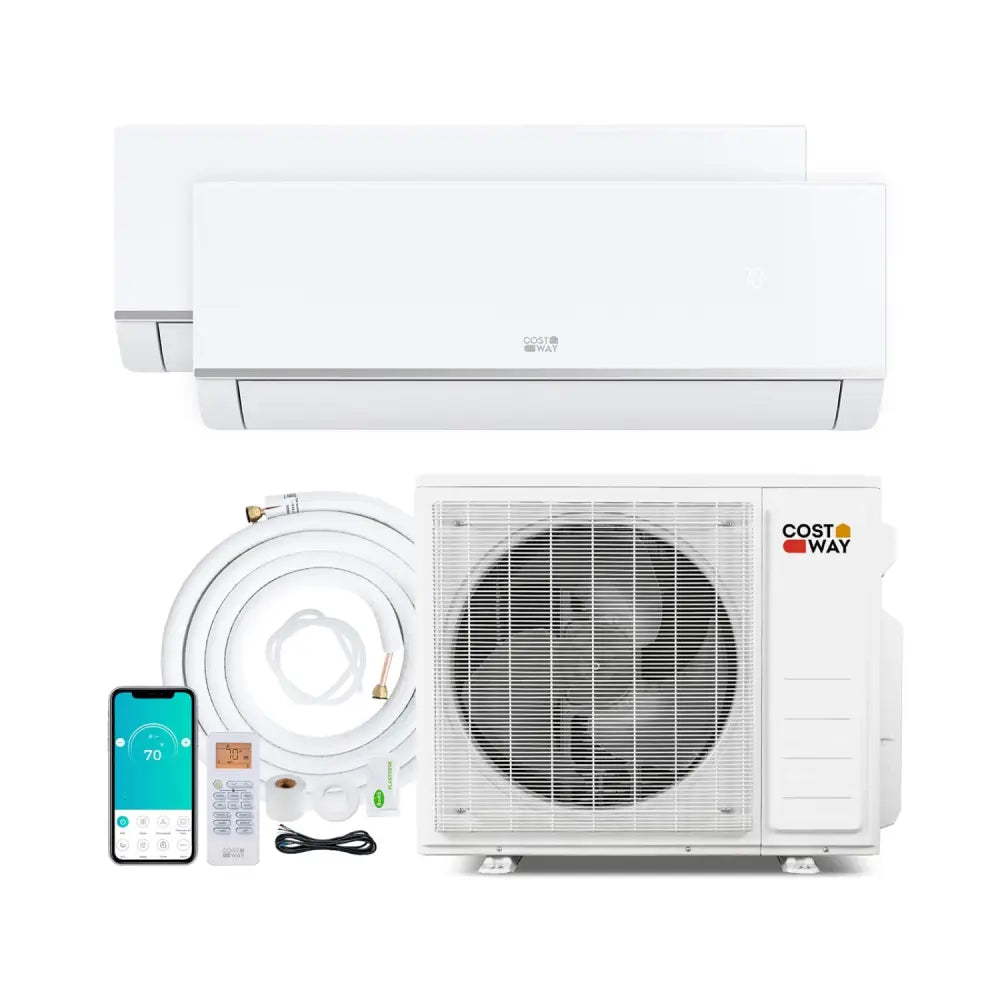

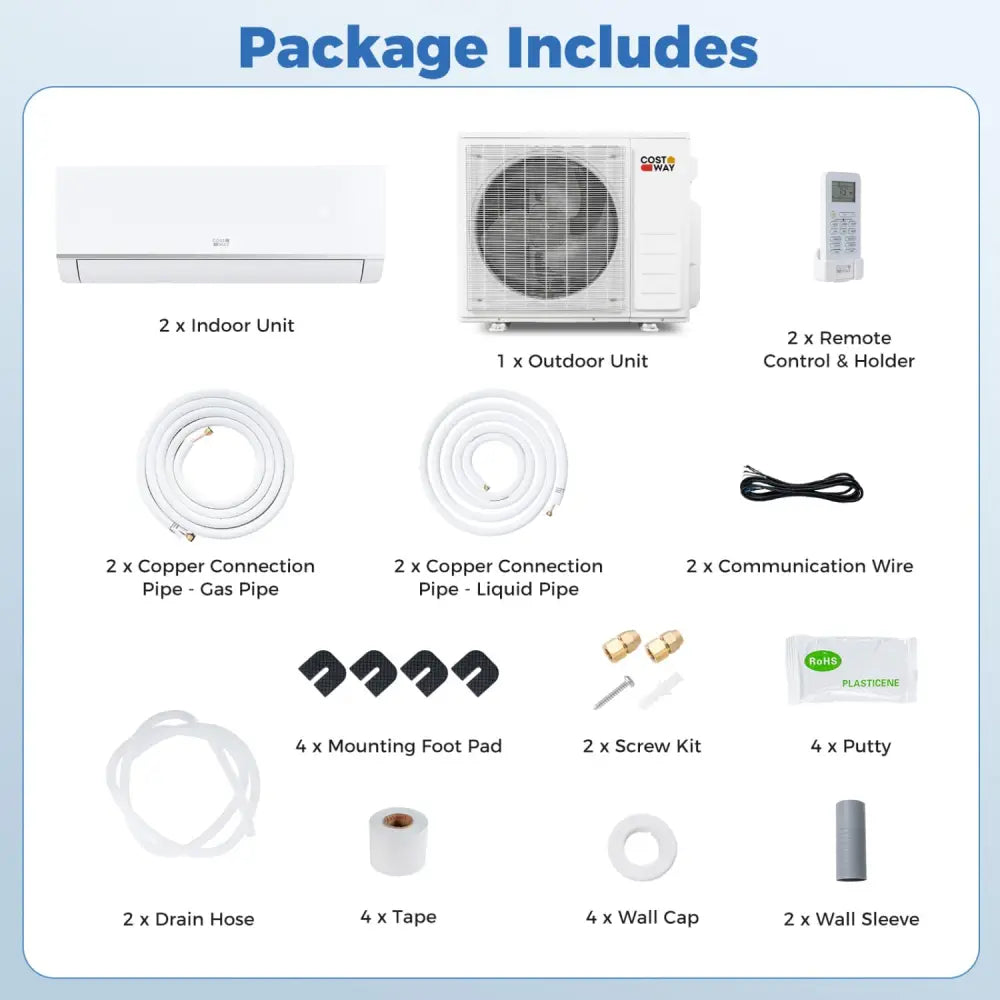

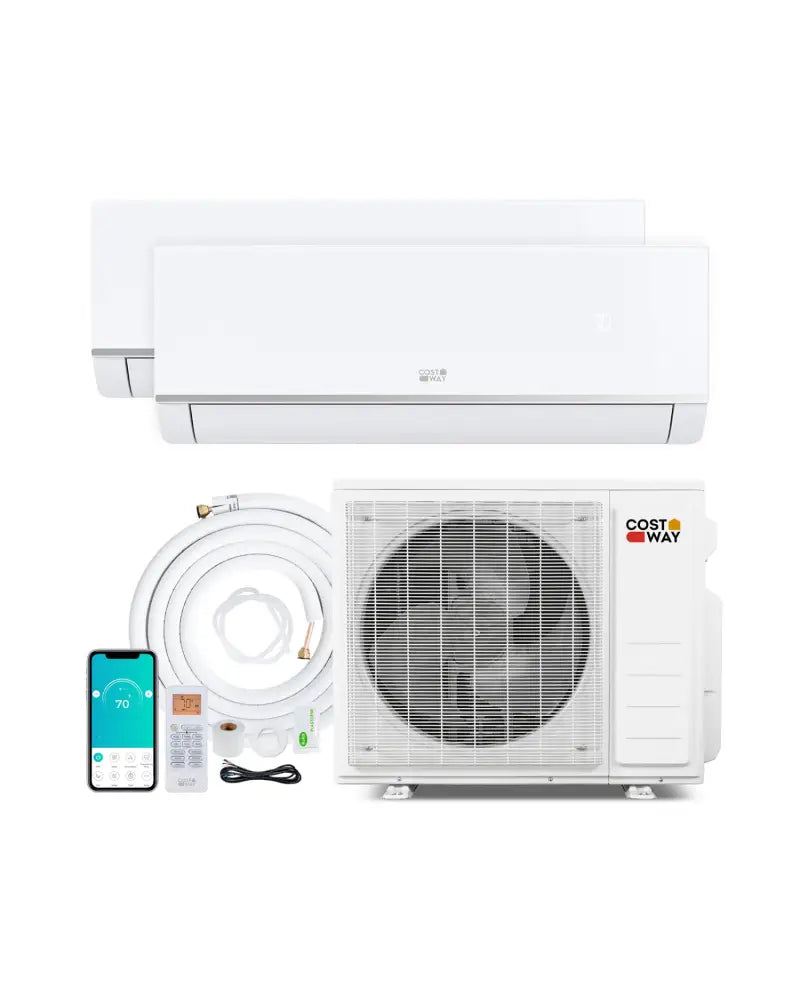

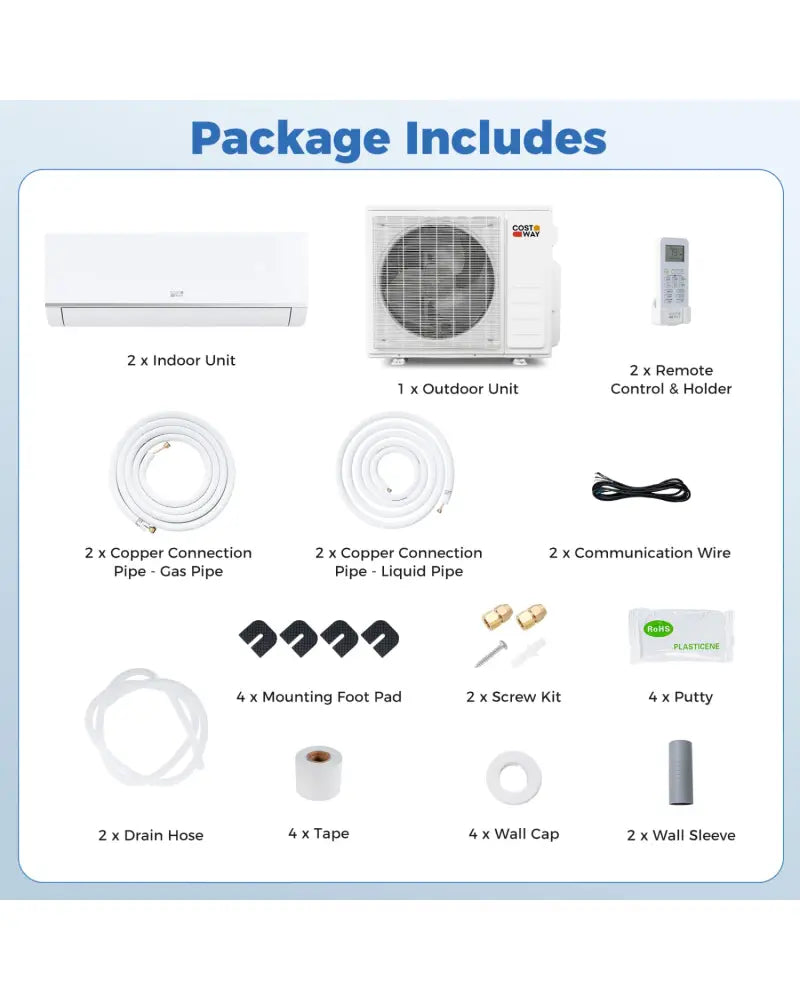

| Package Includes |
1 x Outdoor Unit 2 x Indoor Unit |
| 2 x Copper Connection Pipe - Gas Pipe |
2 x Copper Connection Pipe - Liquid Pipe |
| 2 x Communication Wire 2 x Drain Hose |
2 x Remote Control & Holder |
| 2 x Wall Sleeve 4 x Wall Cap |
4 x Tape 4 x Putty 2 x Screw Kit |
| 4 x Mounting Foot Pad |
4 x User Guide |
