Powerful whole-home cooling and heating for 2 zones23 SEER2 and inverter technology ensure high energy efficiencyOutdoor unit with chassis heating for reliable cold-weather operationChoose from 7 operating modes and 8 fan speeds Easily control from your phone remote or voice demands 24-hour timer for easy daily use and smart energy savingLow noise operation ensures a peaceful environmentSelf-clean function supports fresher airflow over timeRemovable & washable filters for simple cleaningChild lock prevents accidental setting changes4D auto swing offers more even air distribution

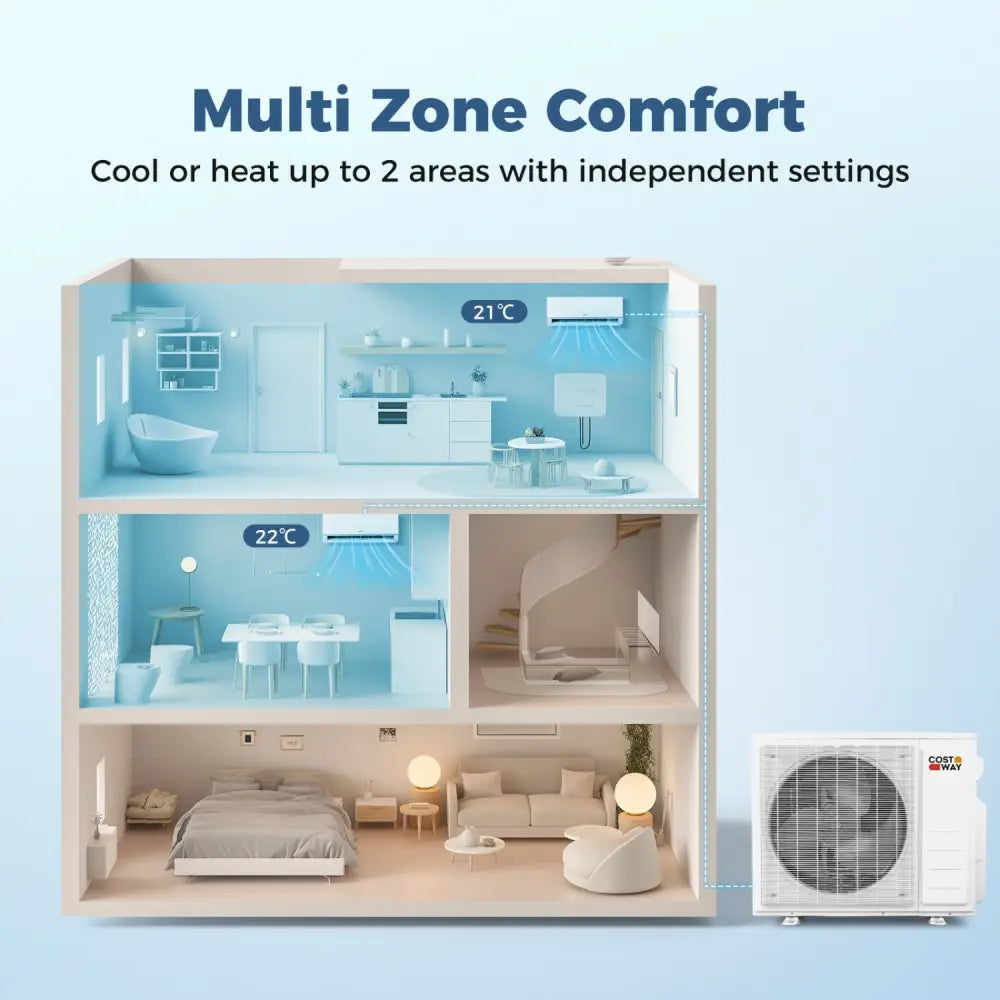

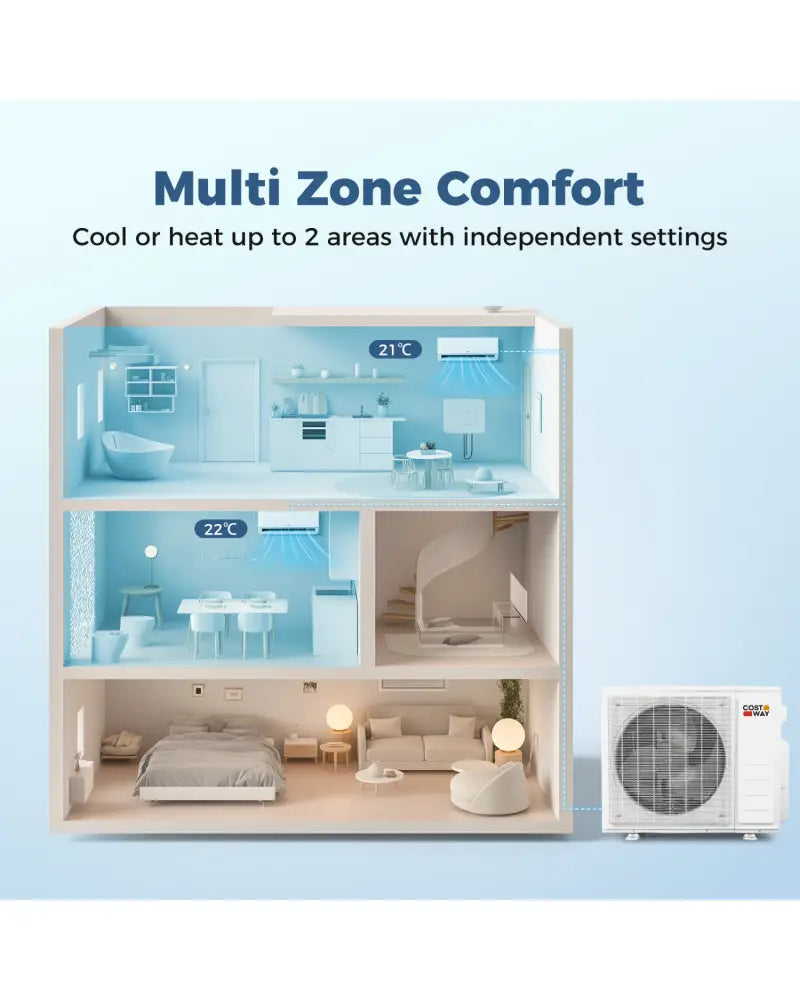

Multi Zone Comfort & Gentle Airflow: This 2 zone 20000 BTU mini split ac/heating system provides room-by-room comfort for larger homes. Dual/tri/quad zone design lets you tailor temperatures where you need them. The 4D swing spreads air more evenly while the golf ball dimples design offers a gentle breeze and prevents direct blowing.

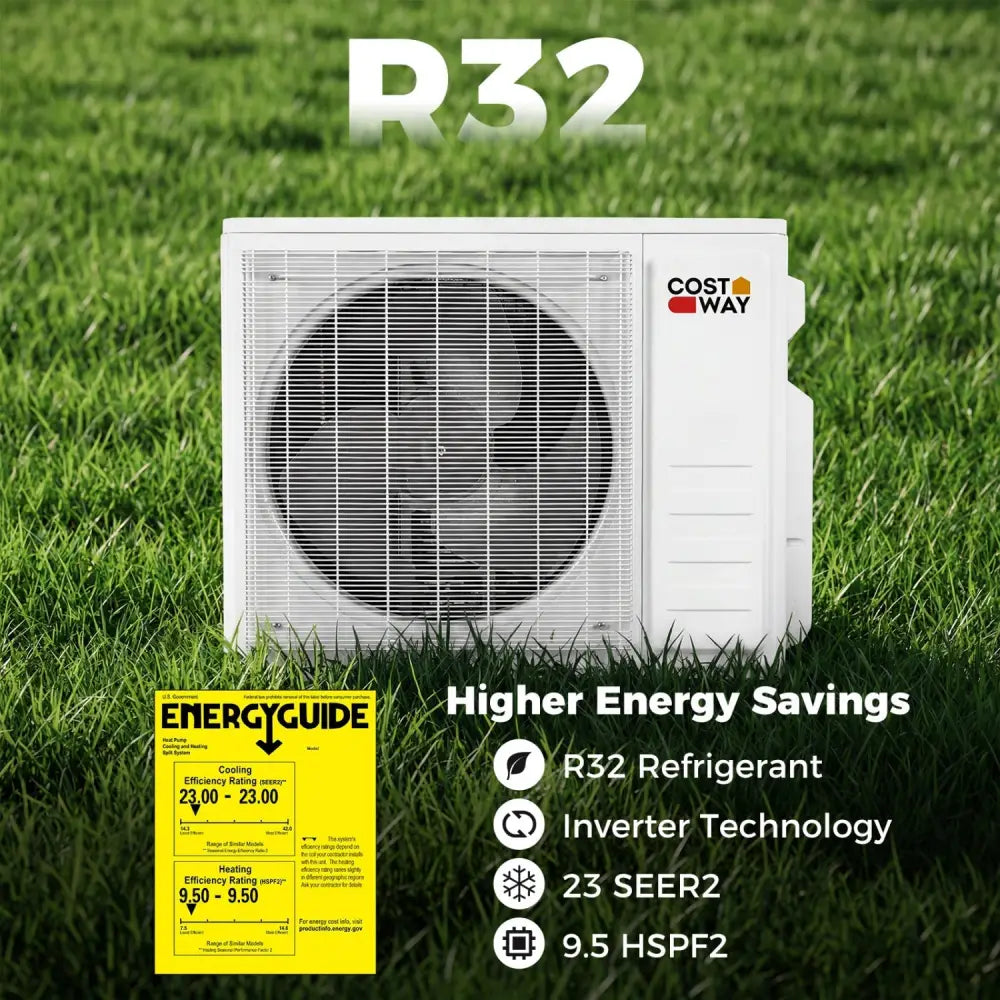

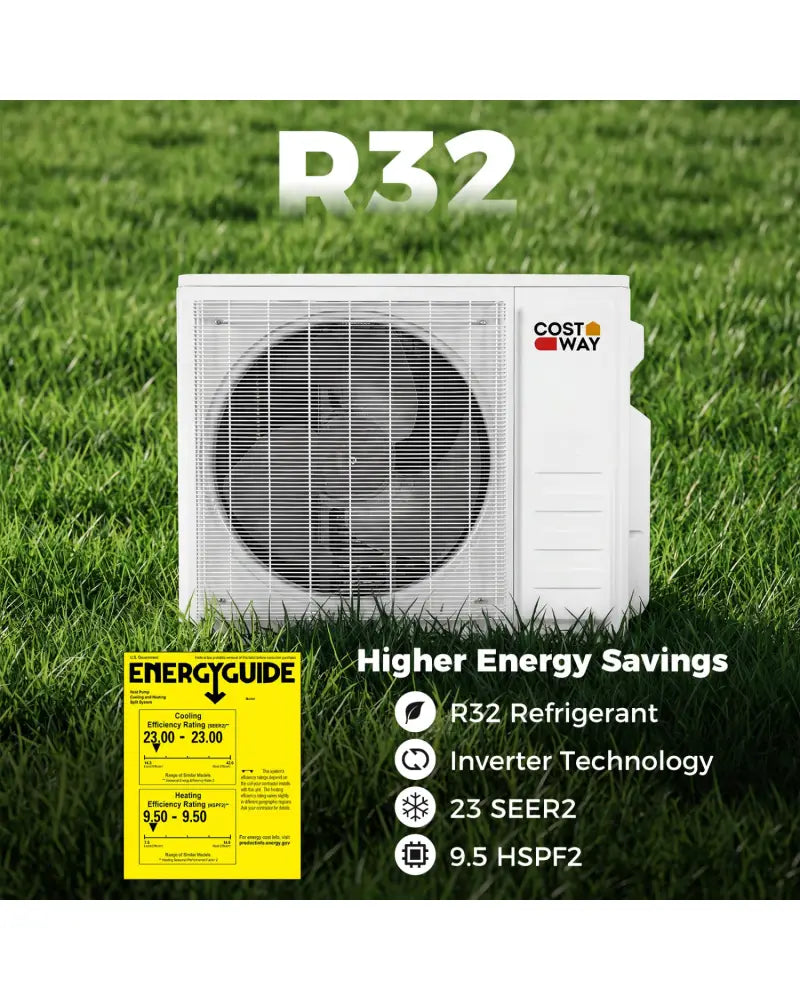

Higher Energy Savings: With a 23 SEER2 rating this mini split ac unit is built to offer powerful heating and cooling with energy-smart control. The advanced inverter technology helps reduce energy waste while keeping set temperatures stable.

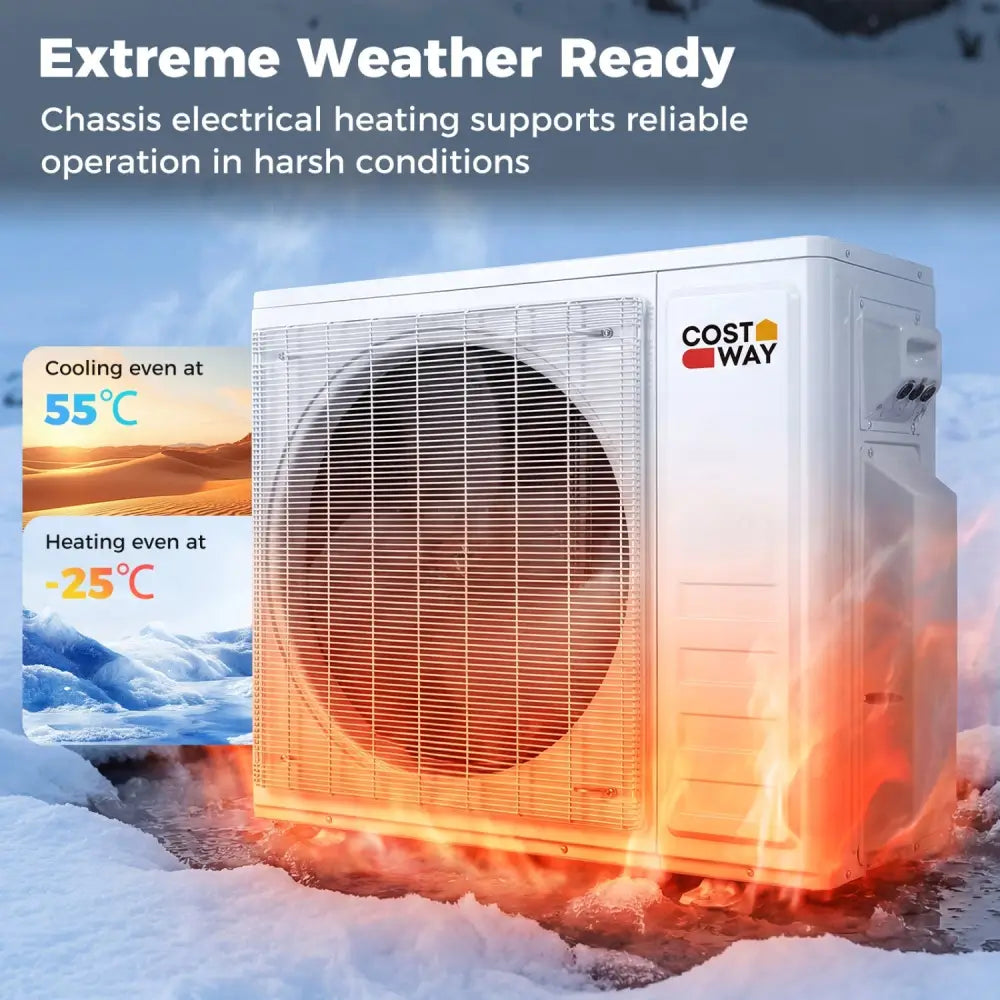

Extreme Weather Ready: The outdoor unit is equipped with chassis electrical heating which supports reliable operation in harsh conditions cooling even at 131„‰ and heating even at -13„‰.

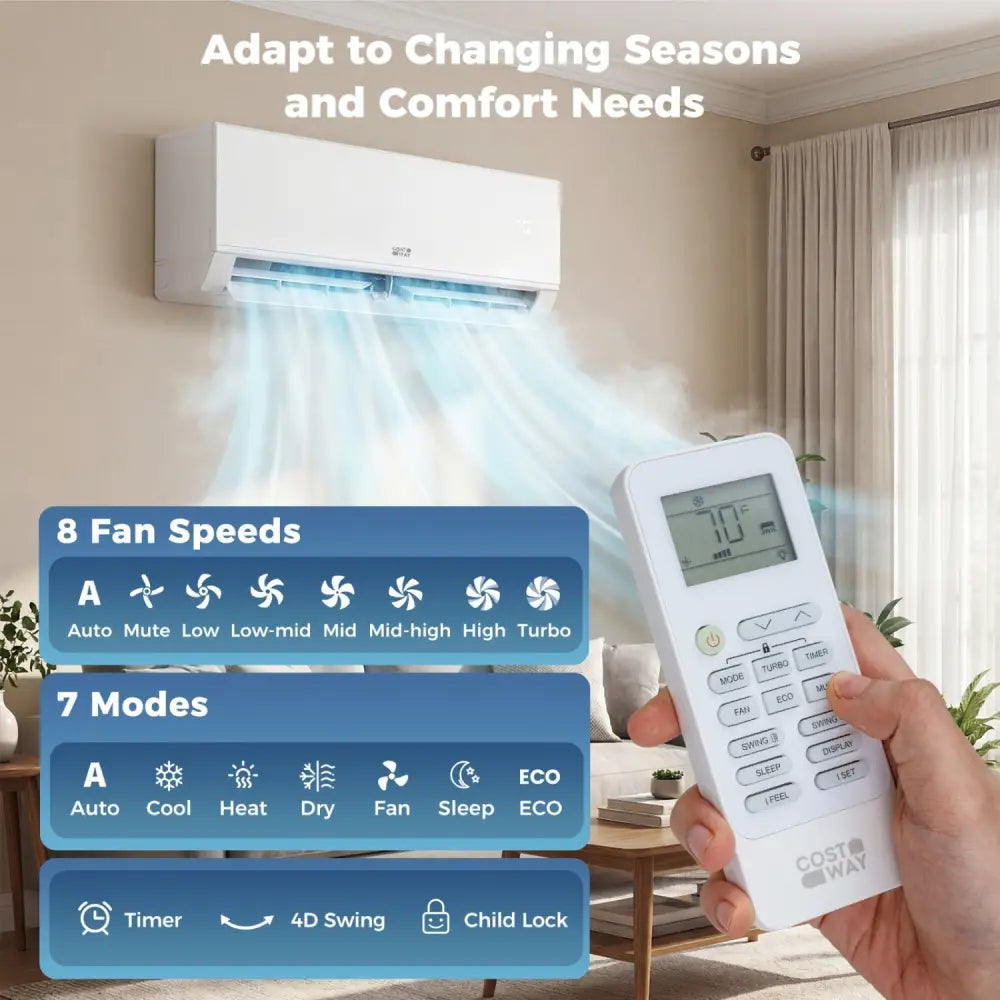

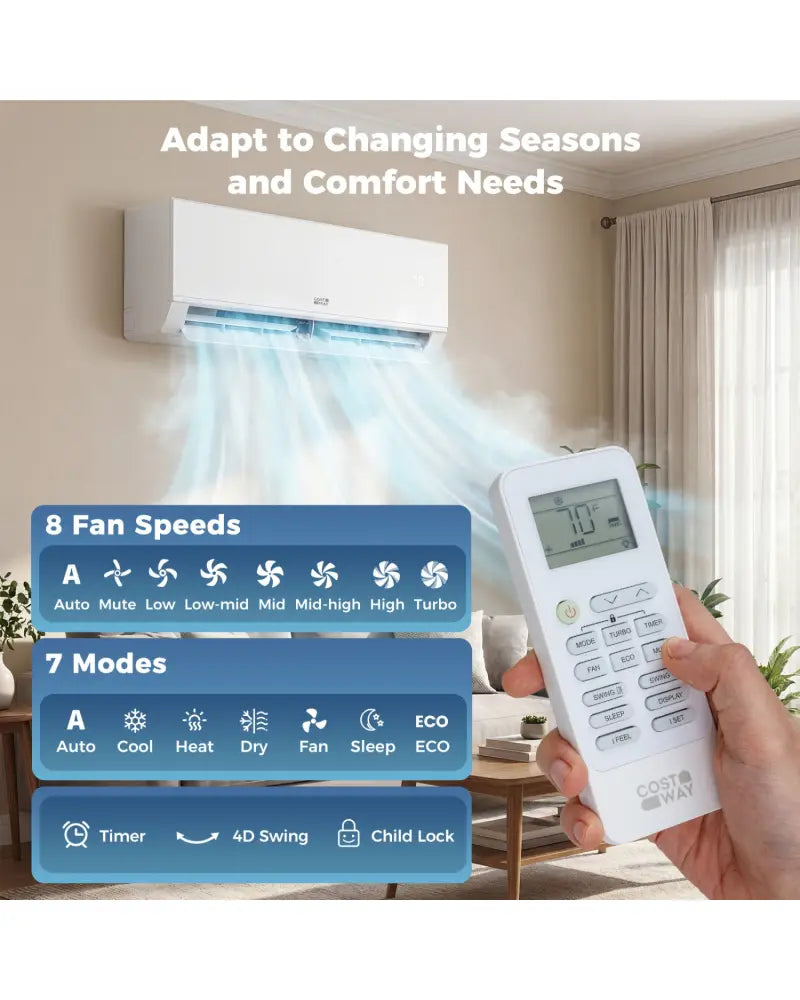

Smart Control & Modes: This wifi enabled mini split air conditioner and heater works with Alexa and Google assistant plus a remote control for quick access. 7 modes (auto cool heat dry fan ECO sleep) 8 fan speeds (auto mute low low-mid mid mid-high high turbo) 24-hour timer and child lock extend comfort to daily use.
Low Noise & Easy Maintenance: This multi zone ac with heat pump operates quietly creating minimal noise as low as 28 dB during operation that enables you to enjoy all-day comfort without distractions. Maintenance is a breeze thanks to the self-clean function and washable filters. Note: Professional licensed HVAC technician installation is recommended.
| Color | White |
| Material | Cold-rolled Steel Sheet Copper Aluminum |

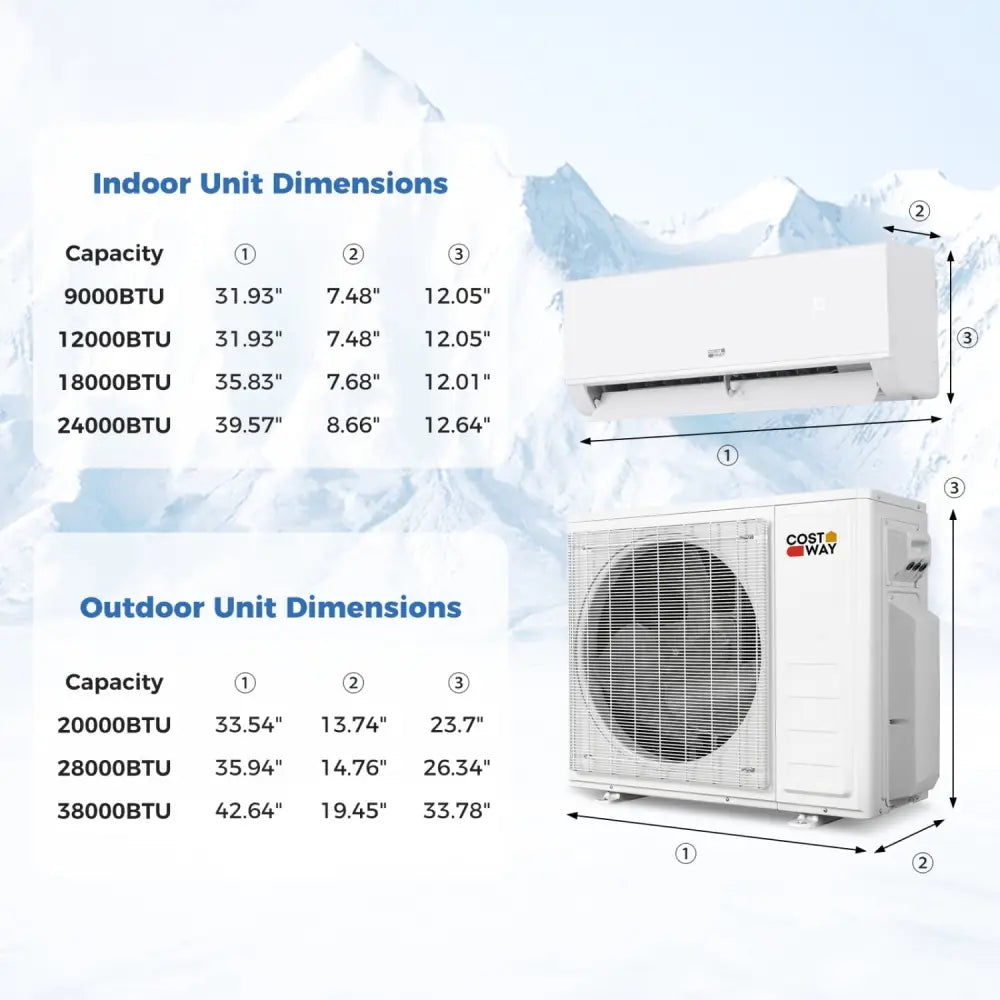

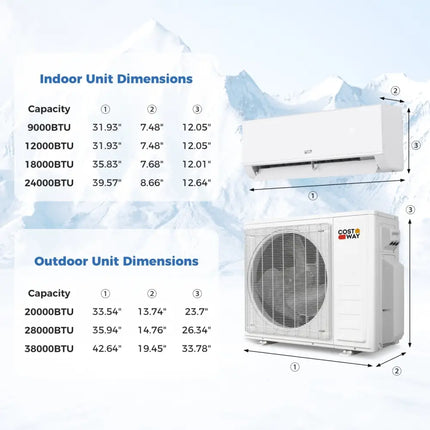

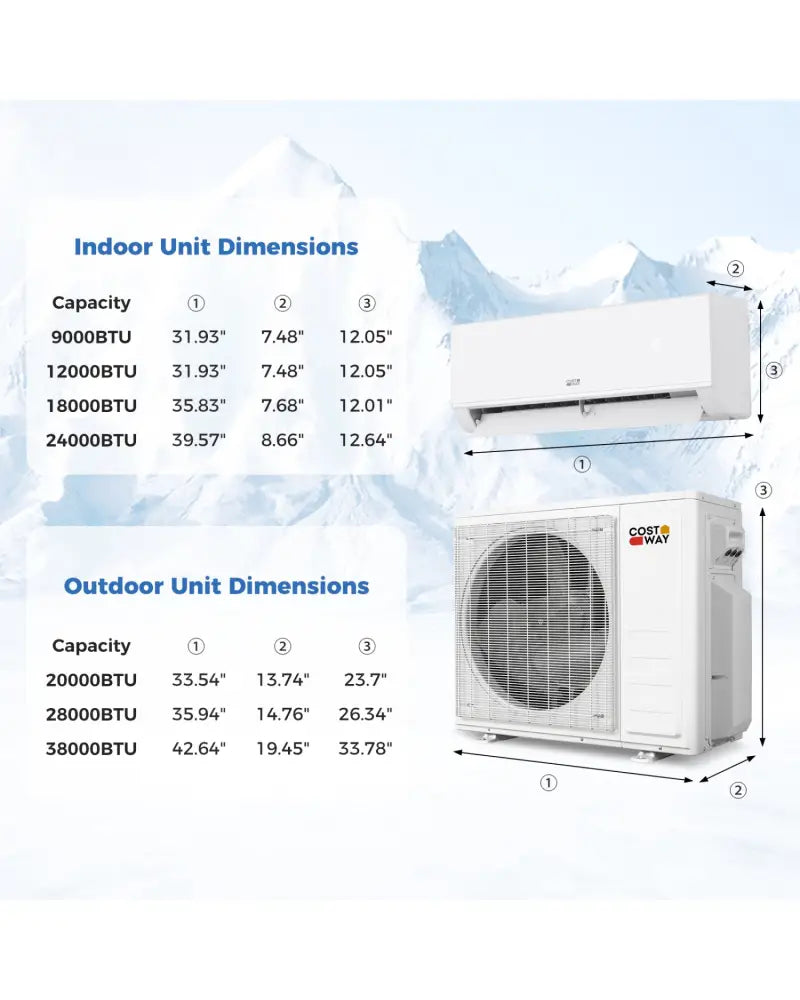

| Indoor Unit Dimensions | . |
| 9K | 31.93€ x 7.48€ x 12.05€ |
| 12K | 31.93€ x 7.48€ x 12.05€ |
| 18K | 35.83" x 7.68" x 12.01" |
| 24K | 39.57" x 8.66" x 12.64" |
| Outdoor Unit Dimensions | . |
| 20K | 33.54" x 13.74" x 23.7" |
| 28K | 35.94" x 14.76" x 26.34" |
| 35K | 42.64" x 19.45" x 33.78" |
| Multi Zone Combination | 2 |
| Voltage | 208/230V |
| Frequency | 60Hz |
| Temperature Setting Range | 60„‰~88„‰ |
| Refrigerant | R32 |
| Indoor Unit Noise Level | 28 dB |
| Max Remote Control Distance | 39.5 ft |
| Coverage Area-9K | 450 Sq.Ft |
| Coverage Area-12K | 750 Sq.Ft |
| Coverage Area-18K | 1250 Sq.Ft |
| Coverage Area-24K | 1500 Sq.Ft |
| Dehumidification Capacity-9K | 66 Pints/Day |
| Dehumidification Capacity-12K | 81.2 Pints/Day |
| Dehumidification Capacity-18K | 111.6 Pints/Day |
| Dehumidification Capacity-24K | 131.9 Pints/Day |
| Maximum Air Flow Volume-9K | 335 CFM/554 m³/h |
| Maximum Air Flow Volume-12K | 342 CFM/554 m³/h |
| Maximum Air Flow Volume-18K | 617 CFM/554 m³/h |
| Maximum Air Flow Volume-24K | 847 CFM/554 m³/h |
| 20k SEER2 | 23 |
| 28K SEER2 | 20 |
| 38K SEER2 | 20 |
| 20K HSPF2 | 9.5 |
| 28K HSPF2 | 9.5 |
| 38K HSPF2 | 9.5 |
| Diameter of Liquid Pipe | 1/4" |
| Diameter of Gas Pipe-9K | 3/8" |
| Diameter of Gas Pipe-12K | 3/8" |
| Diameter of Gas Pipe-18K | 3/8" |
| Diameter of Gas Pipe-24K | 1/2" |
| Box Qty | 4 |

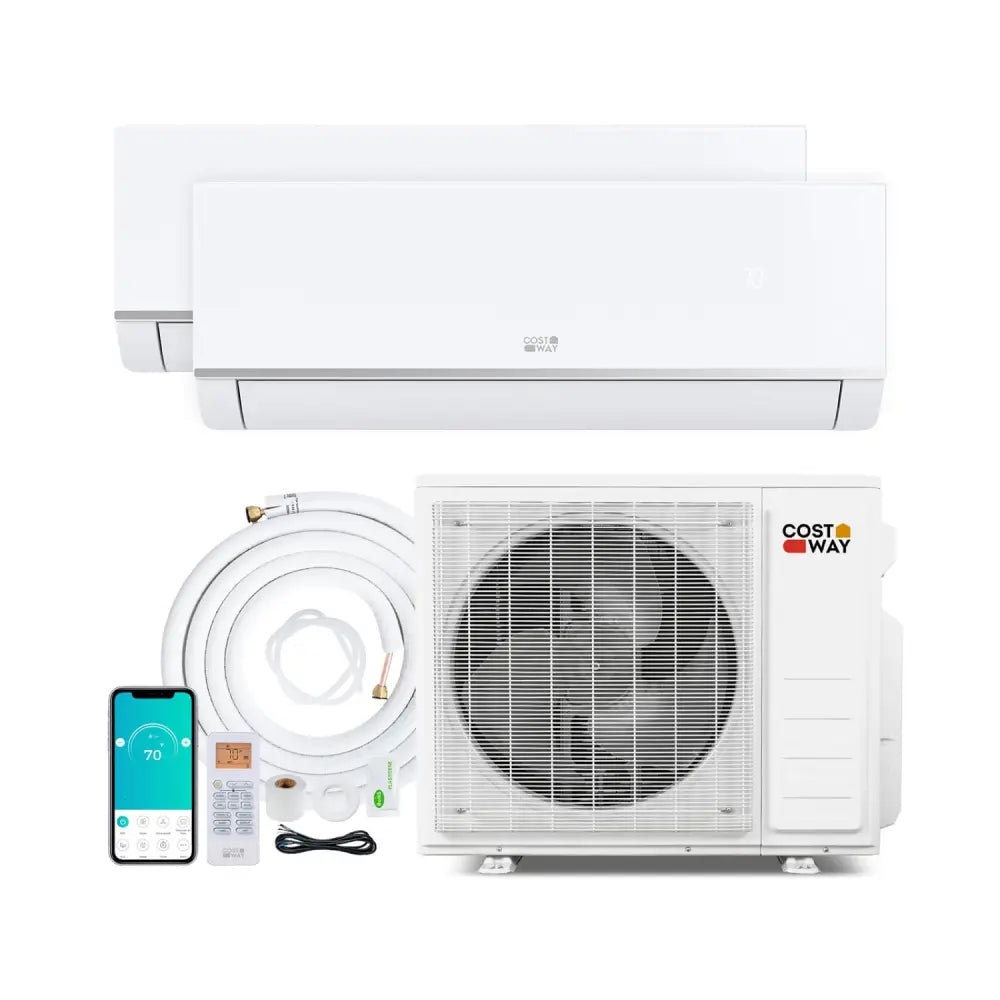

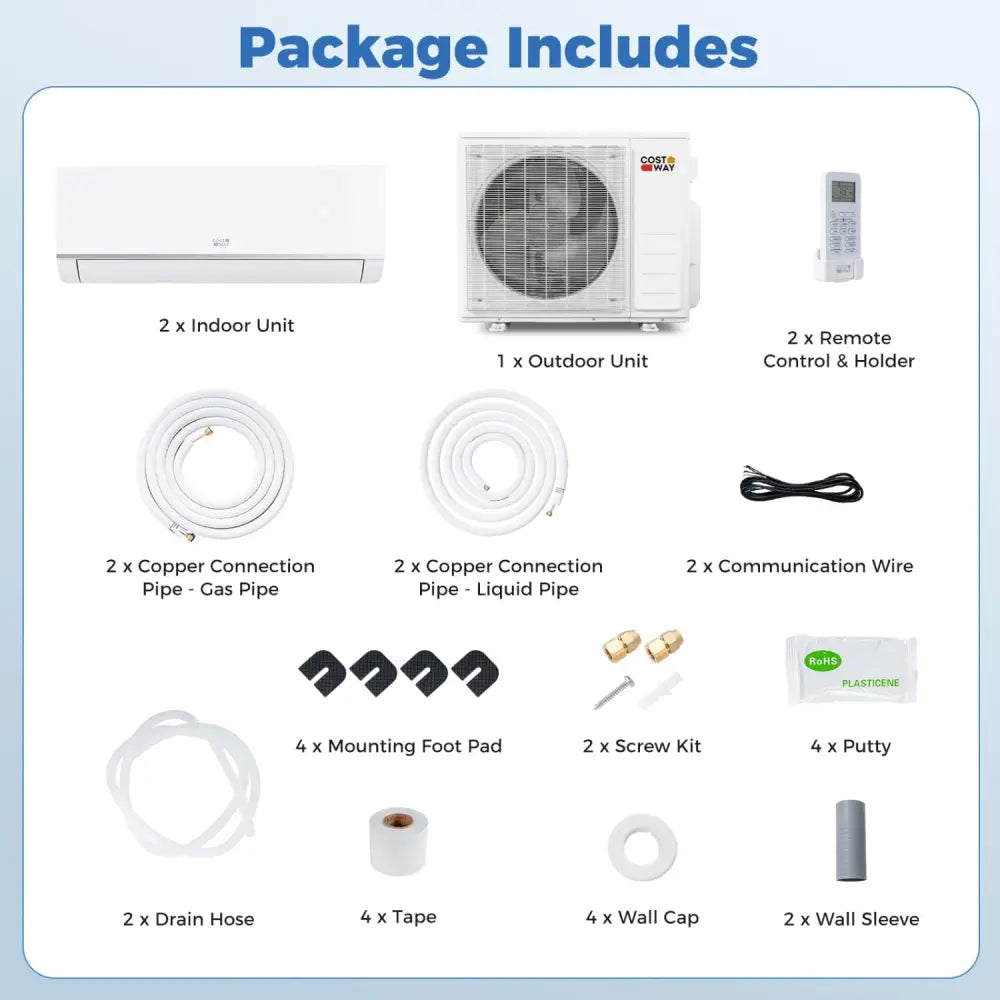

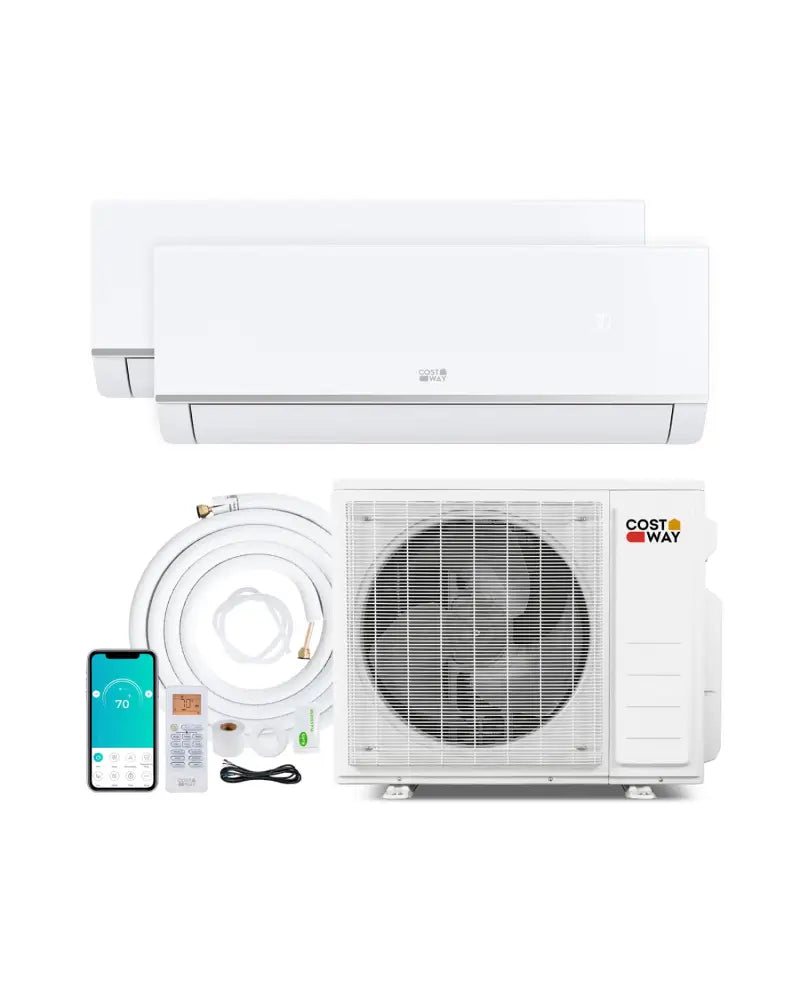

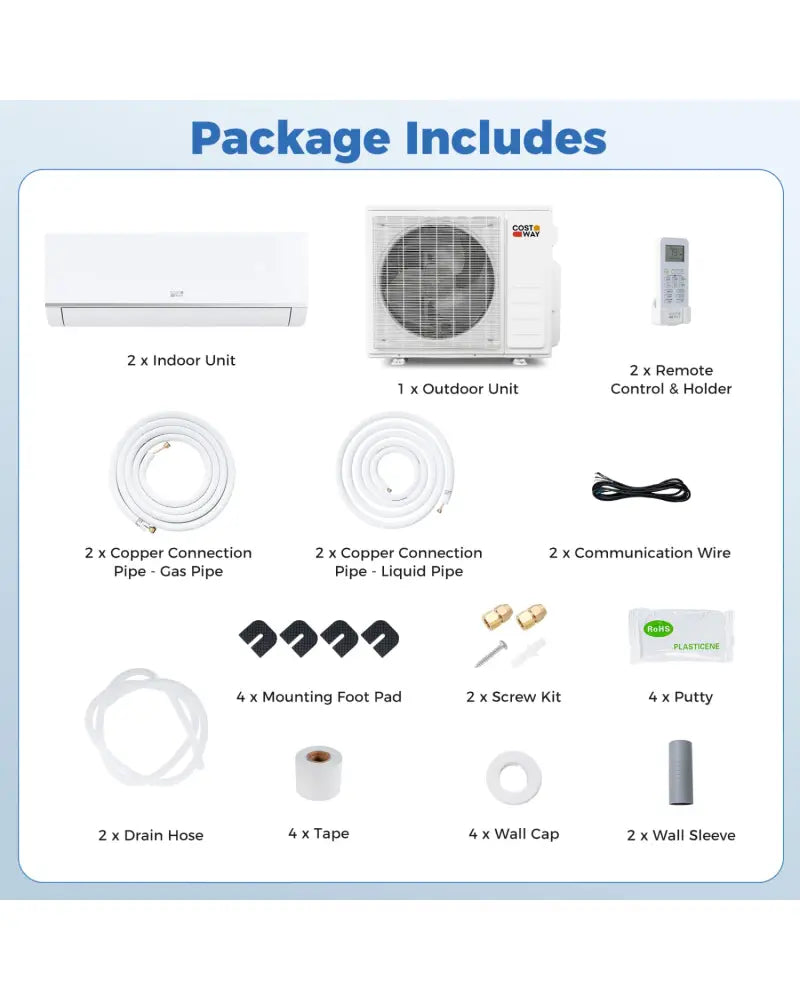

| Package Includes | 1 x Outdoor Unit 2 x Indoor Unit |
| 2 x Copper Connection Pipe - Gas Pipe | 2 x Copper Connection Pipe - Liquid Pipe |
| 2 x Communication Wire 2 x Drain Hose | 2 x Remote Control & Holder |
| 2 x Wall Sleeve 4 x Wall Cap | 4 x Tape 4 x Putty 2 x Screw Kit |
| 4 x Mounting Foot Pad | 4 x User Guide |
