Powerful whole-home cooling and heating for 2 zones 20 SEER2 and inverter technology ensure high energy efficiency Outdoor unit with chassis heating for reliable cold-weather operation Choose from 7 operating modes and 8 fan speeds Easily control from your phone remote or voice demands 24-hour timer for easy daily use and smart energy saving Low noise operation ensures a peaceful environment Self-clean function supports fresher airflow over time Removable and washable filters for simple cleaning Child lock prevents accidental setting changes 4D auto swing offers more even air distribution

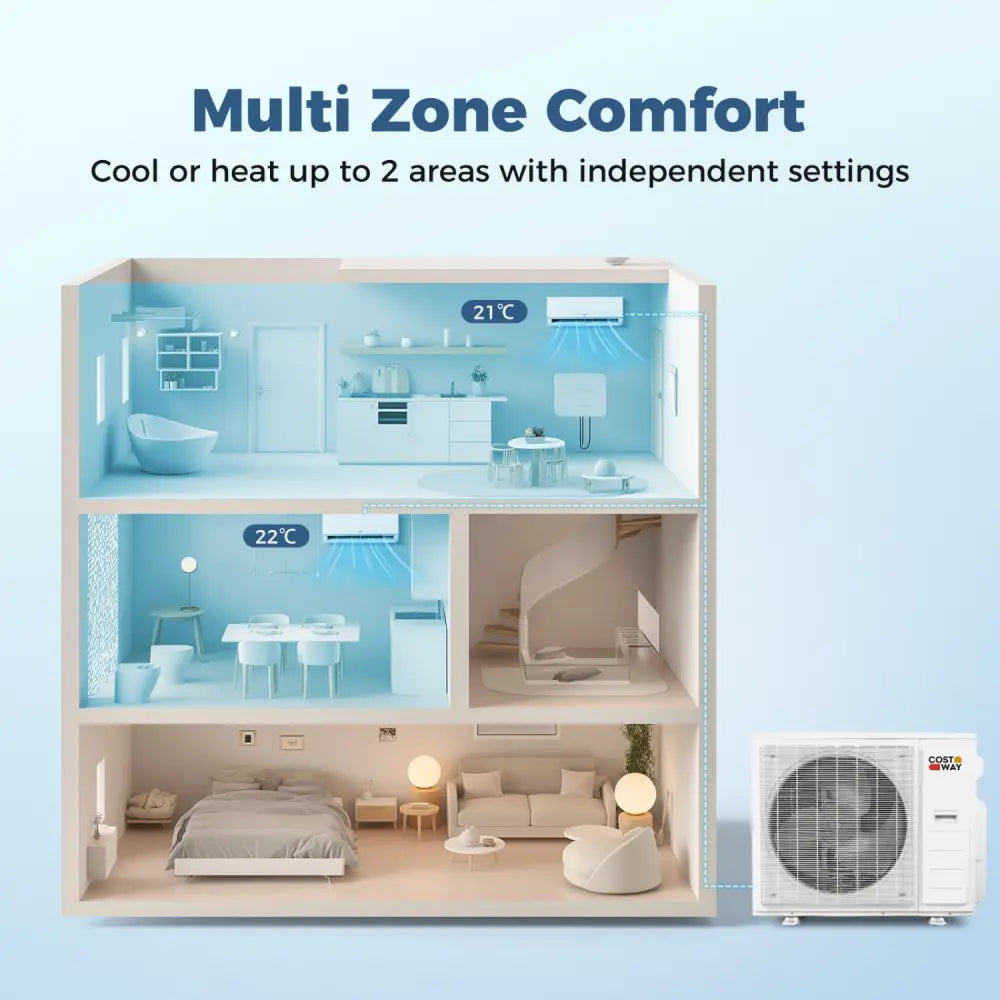

Multi Zone Comfort and Gentle Airflow: This 2 zone 38000 BTU mini split ac/heating system provides room-by-room comfort for larger homes. Dual/tri/quad zone design lets you tailor temperatures where you need them. The 4D swing spreads air more evenly while the golf ball dimples design offers a gentle breeze and prevents direct blowing.

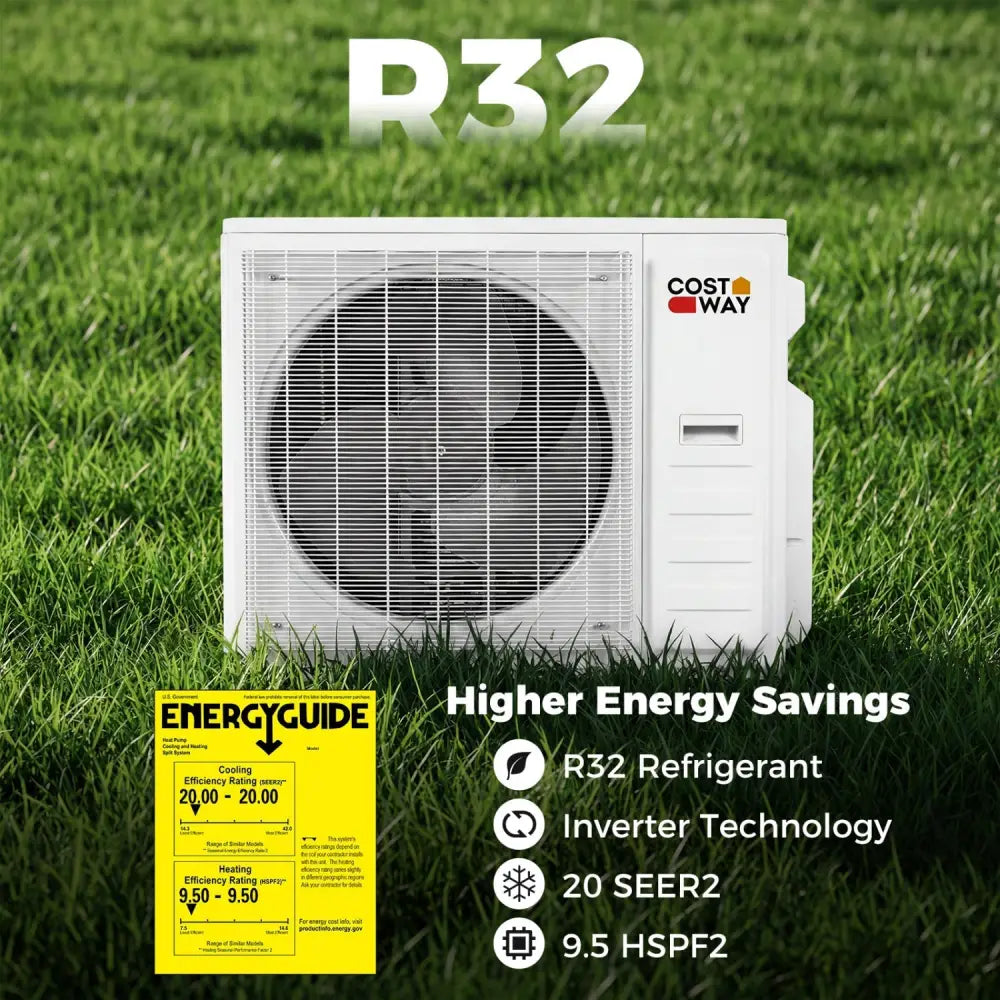

Higher Energy Savings: With a 20 SEER2 rating this mini split ac unit is built to offer powerful heating and cooling with energy-smart control. The advanced inverter technology helps reduce energy waste while keeping set temperatures stable.

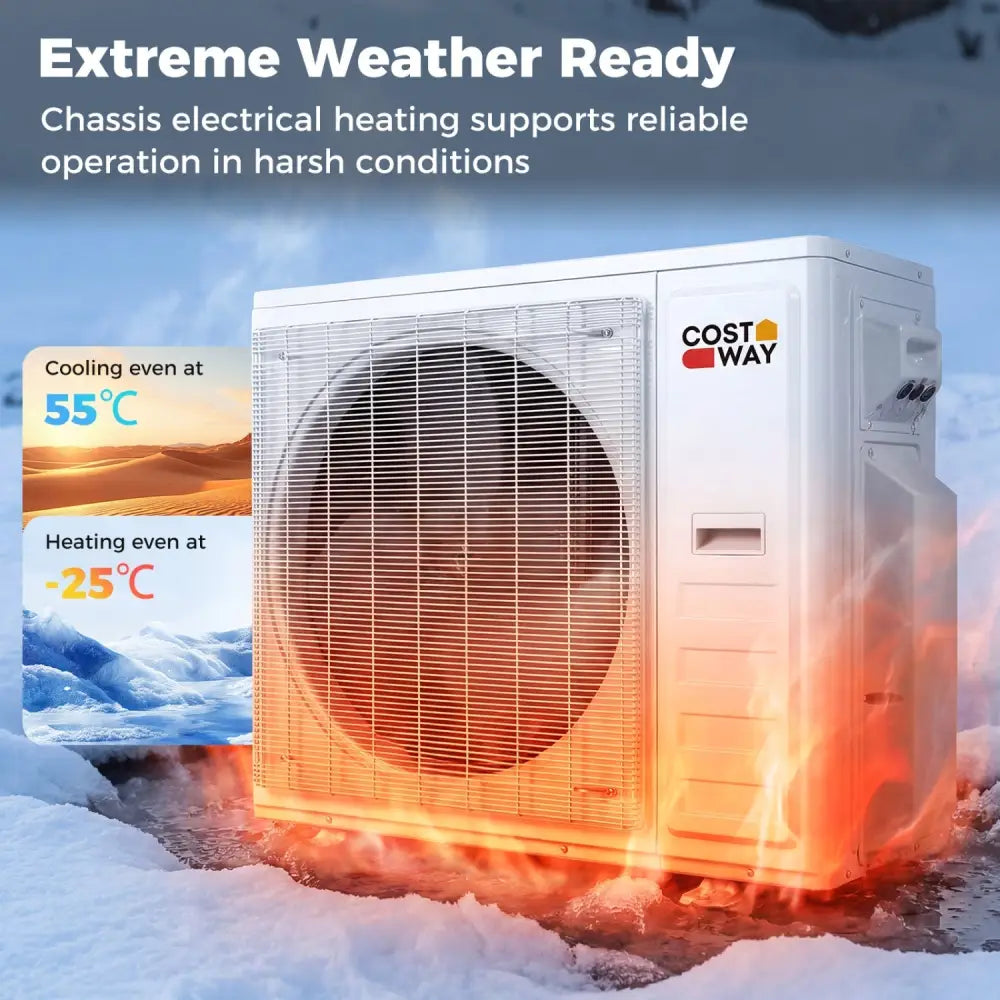

Extreme Weather Ready: The outdoor unit is equipped with chassis electrical heating which supports reliable operation in harsh conditions cooling even at 55„ƒ and heating even at -25„ƒ.
Smart Control and Modes: This wifi enabled mini split air conditioner and heater works with Alexa and Google assistant plus a remote control for quick access. 7 modes (auto cool heat dry fan ECO sleep) 8 fan speeds (auto mute low low-mid mid mid-high high turbo) 24-hour timer and child lock extend comfort to daily use. Low Noise and Easy Maintenance: This multi zone ac with heat pump operates quietly creating minimal noise as low as 28 dB during operation that enables you to enjoy all-day comfort without distractions. Maintenance is a breeze thanks to the self-clean function and washable filters. Note: Professional licensed HVAC technician installation is recommended.
| Color | White |
| Material | Cold-rolled Steel Sheet Copper Aluminum |

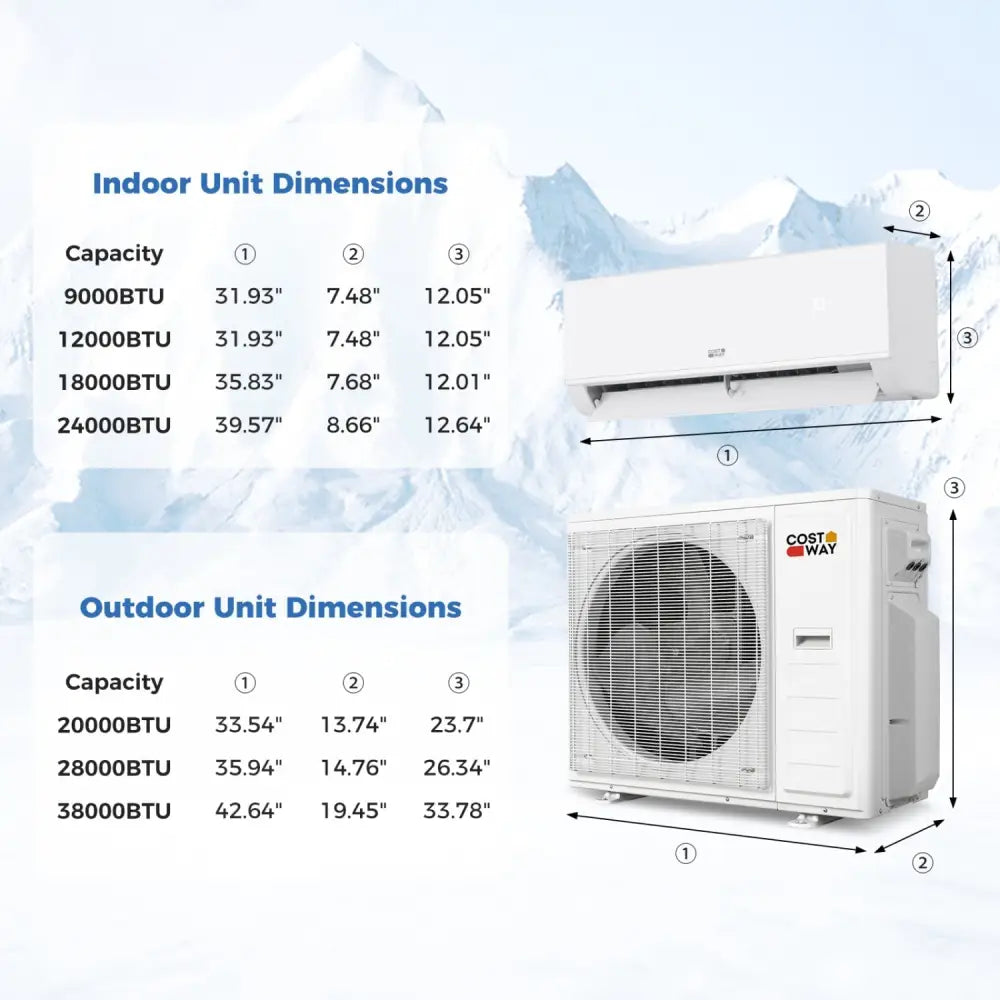

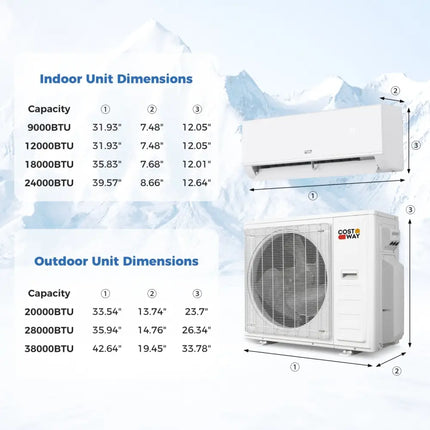

| Indoor Unit Dimensions | . |
| 9K | 31.93€ x 7.48€ x 12.05€ (L x W x H) |
| 12K | 31.93€ x 7.48€ x 12.05€ (L x W x H) |
| 18K | 35.83" x 7.68" x 12.01" (L x W x H) |
| 24K | 39.57" x 8.66" x 12.64" (L x W x H) |
| Outdoor Unit Dimensions | . |
| 20K | 33.54" x 13.74" x 23.7" (L x W x H) |
| 28K | 35.94" x 14.76" x 26.34" (L x W x H) |
| 38K | 42.64" x 19.45" x 33.78" (L x W x H) |
| Multi Zone Combination | 2 |
| Voltage | 208/230V |
| Frequency | 60Hz |
| Temperature Setting Range | 16„ƒ~31„ƒ |
| Refrigerant | R32 |
| Indoor Unit Noise Level | 28 dB |
| Max Remote Control Distance | 39.5 ft |
| Coverage Area | . |
| 9k | 450 Sq.Ft |
| 12k | 750 Sq.Ft |
| 18k | 1250 Sq.Ft |
| 24k | 1500 Sq.Ft |
| Dehumidification Capacity | . |
| 9k | 66 Pints/Day |
| 12k | 81.2 Pints/Day |
| 18k | 111.6 Pints/Day |
| 24k | 131.9 Pints/Day |
| Maximum Air Flow Volume | . |
| 9k | 335 CFM |
| 12k | 342 CFM |
| 18k | 617 CFM |
| 24k | 847 CFM |
| SEER2 | . |
| 20k | 23 |
| 28k | 20 |
| 38k | 20 |
| HSPF2 | . |
| 20k | 9.5 |
| 28k | 9.5 |
| 38k | 9.5 |
| Diameter of Liquid Pipe | 1/4" |
| Diameter of Gas Pipe | . |
| 9k | 3/8" |
| 12k | 3/8" |
| 18k | 3/8" |
| 24k | 1/2" |
| Net Weight of 38K(Outdoor Unit) | 148.8 lbs |
| Net Weight of 9K(Indoor Unit) | 19.8 lbs |
| Net Weight of 12K | 19.8 lbs |
| Net Weight of 18K | 20.9 lbs |
| Net Weight of 24K | 27.6 lbs |
| Box Qty | 4 |
| Is Assembly Required | Yes |

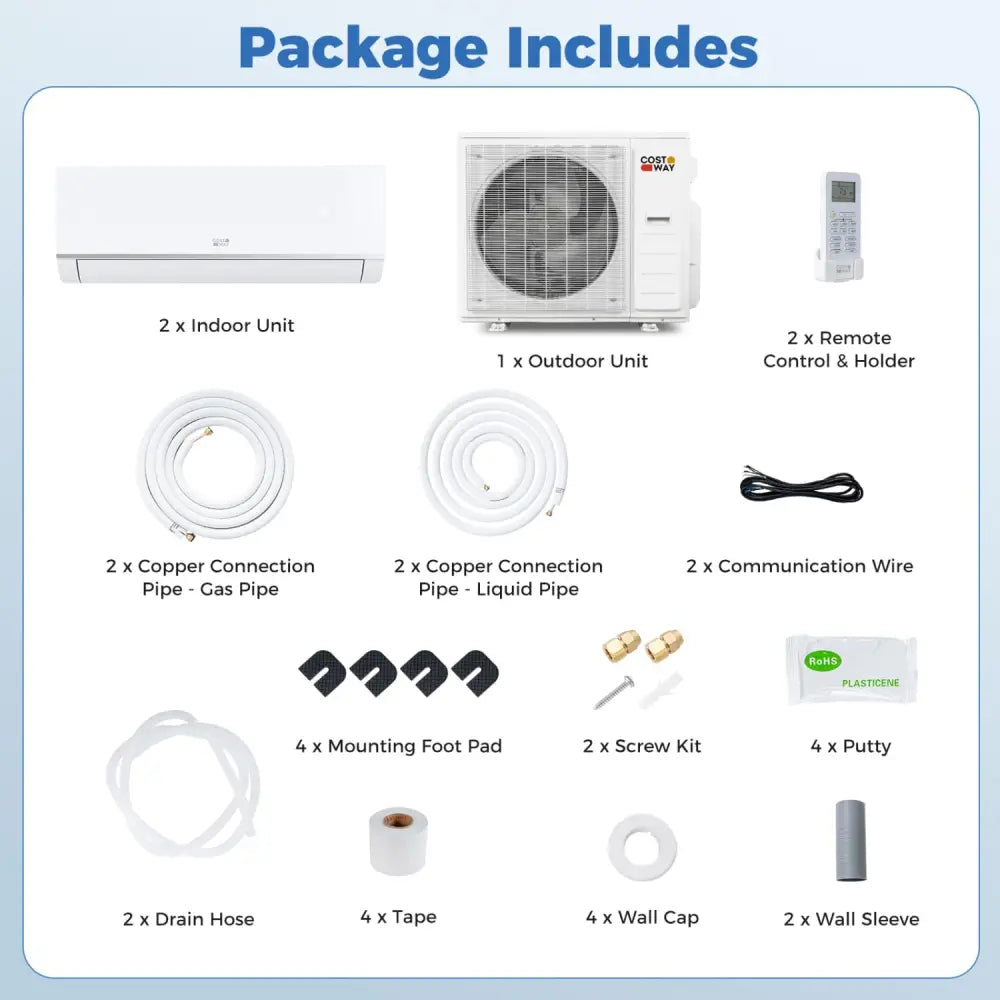

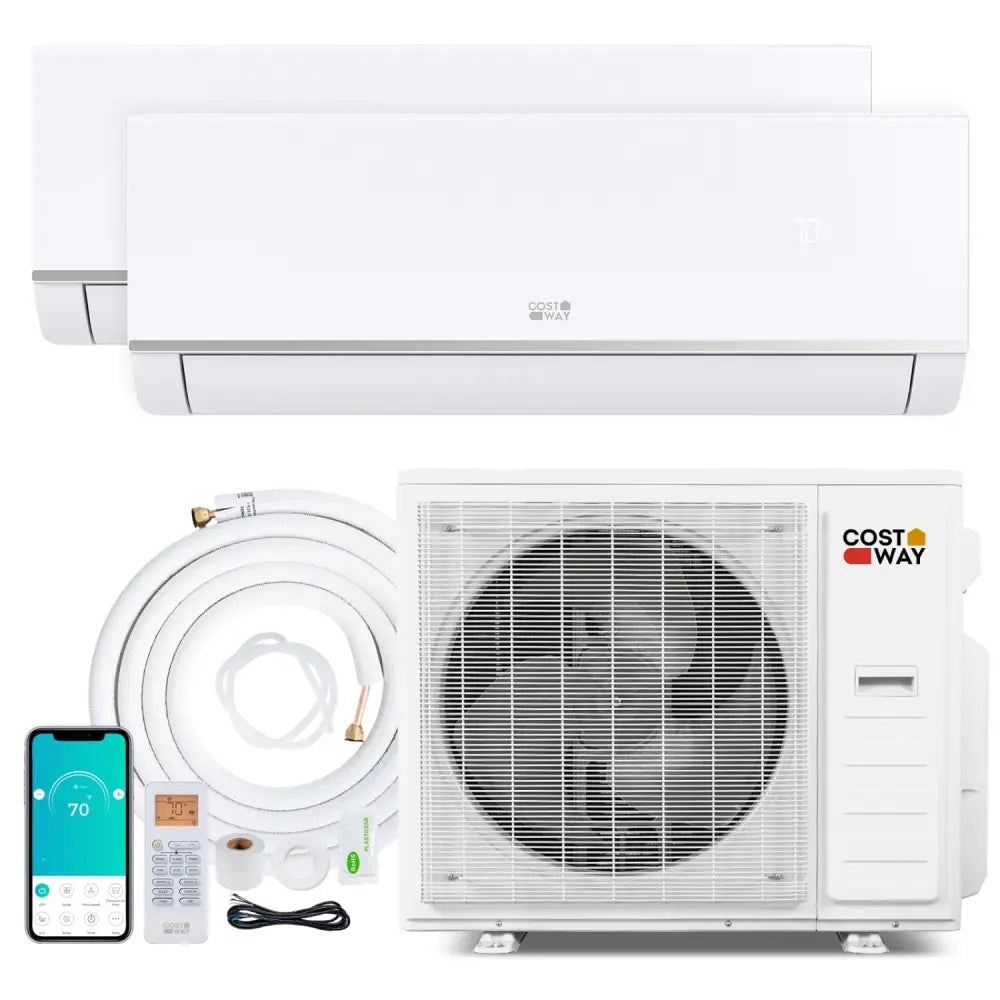

| Package Includes | 1 x Outdoor Unit 2 x Indoor Unit |
| 2 x Copper Connection Pipe - Gas Pipe | 2 x Copper Connection Pipe - Liquid Pipe |
| 2 x Communication Wire 2 x Drain Hose | 2 x Remote Control & Holder 2 x Wall Sleeve |
| 4 x Wall Cap 4 x Tape 4 x Putty | 2 x Screw Kit 4 x Mounting Foot Pad 4 x User Guide |
