Powerful whole-home cooling and heating for 3 zones 20 SEER2 and inverter technology ensure high energy efficiency Outdoor unit with chassis heating for reliable cold-weather operation Choose from 7 operating modes and 8 fan speeds Easily control from your phone remote or voice demands 24-hour timer for easy daily use and smart energy saving Low noise operation ensures a peaceful environment Self-clean function supports fresher airflow over time Removable & washable filters for simple cleaning Child lock prevents accidental setting changes 4D auto swing offers more even air distribution

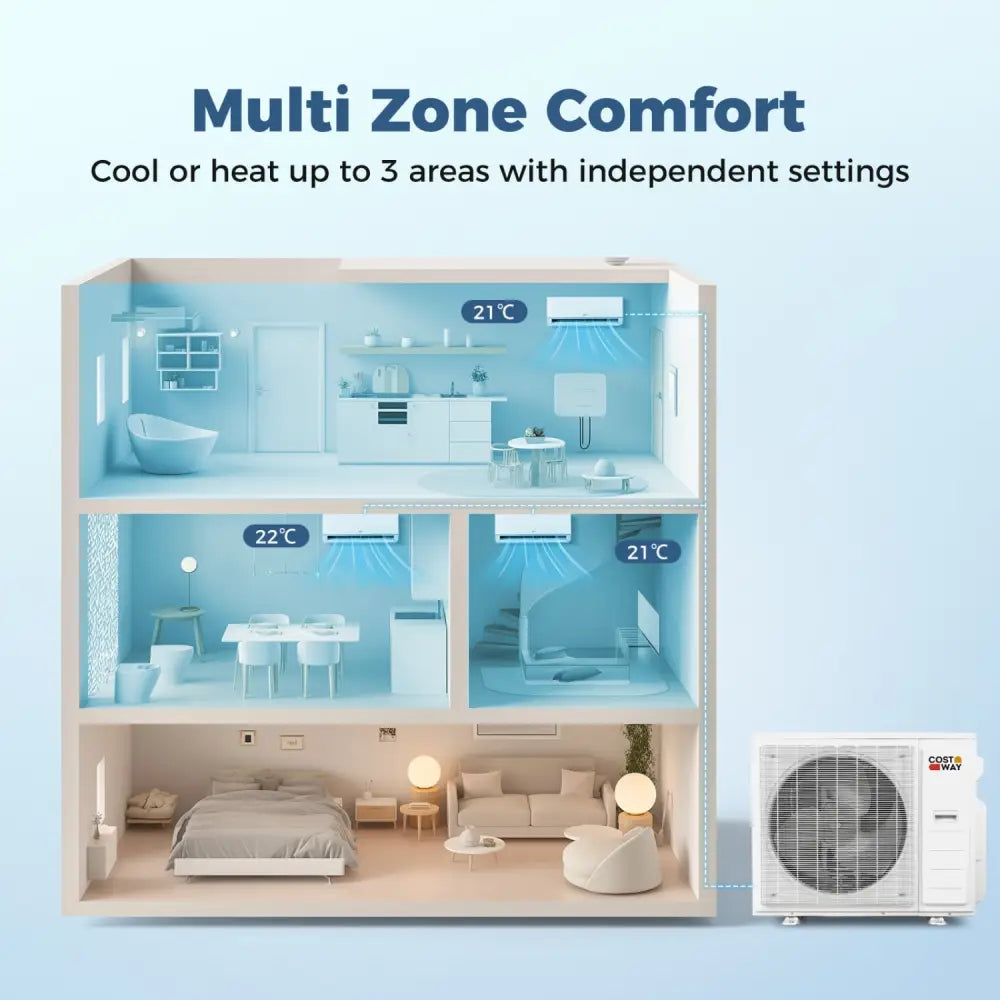

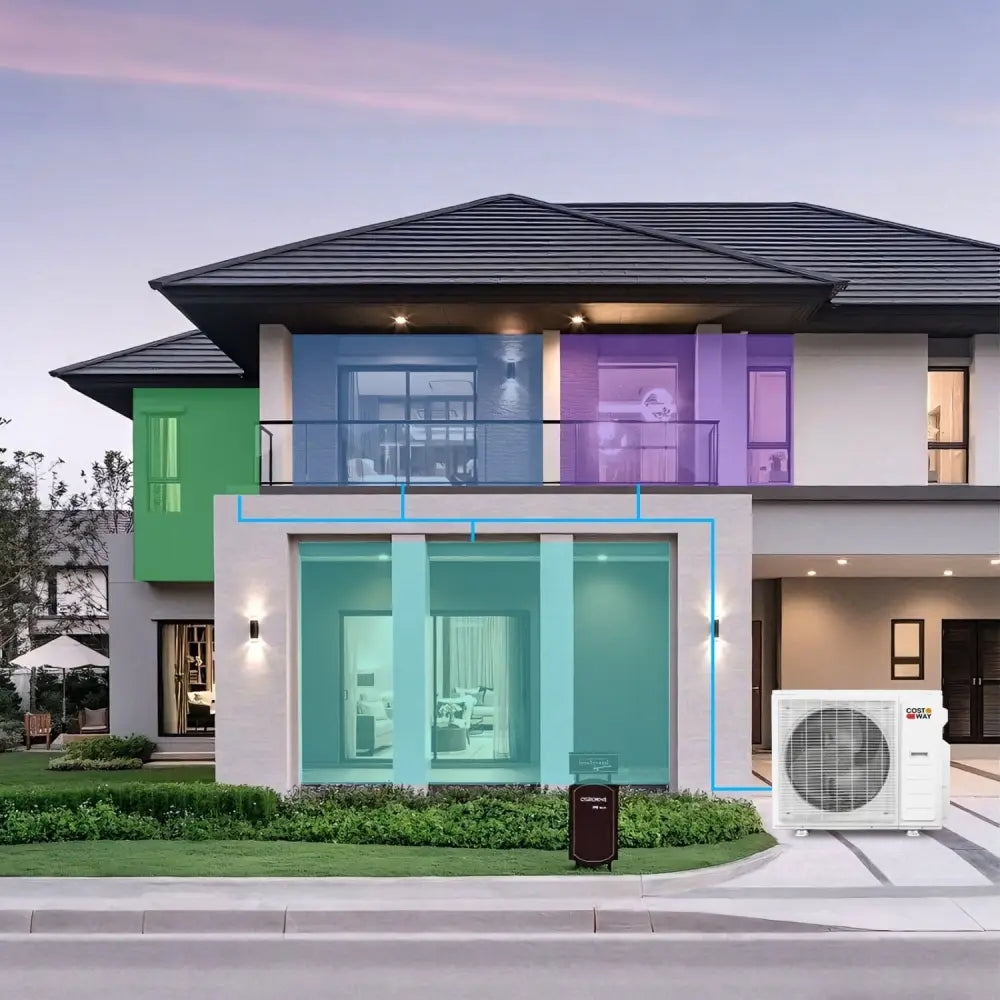

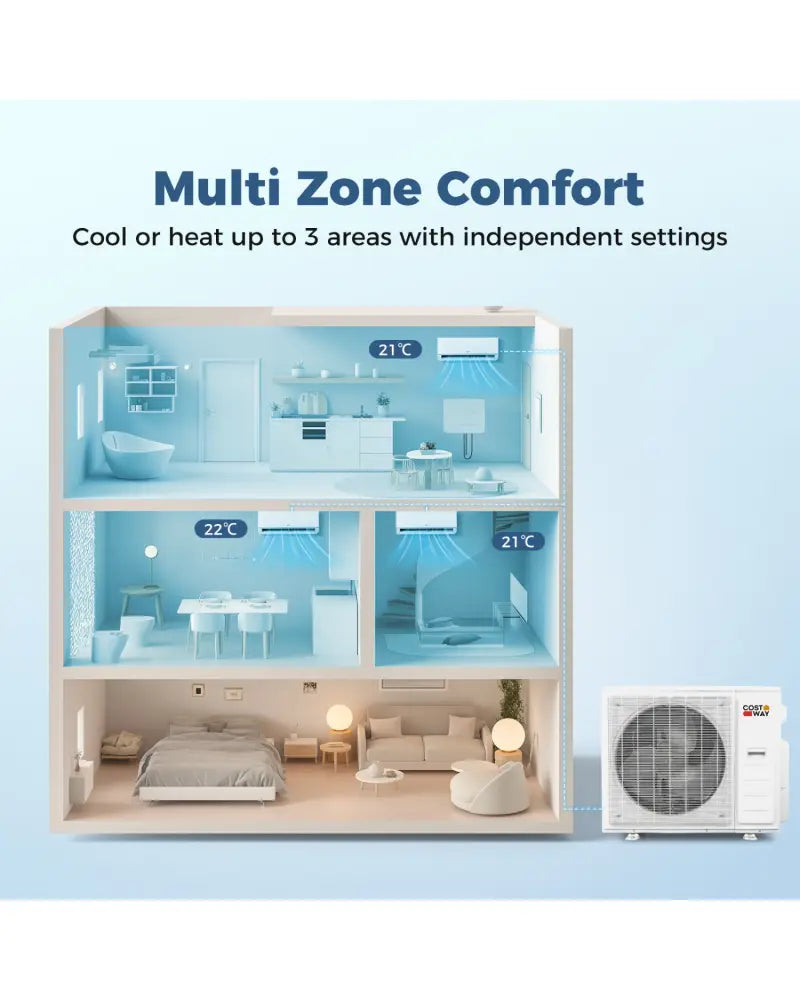

Multi Zone Comfort & Gentle Airflow: This 3 zone 38000 BTU mini split ac/heating system provides room-by-room comfort for larger homes. Dual/tri/quad zone design lets you tailor temperatures where you need them. The 4D swing spreads air more evenly while the golf ball dimples design offers a gentle breeze and prevents direct blowing.

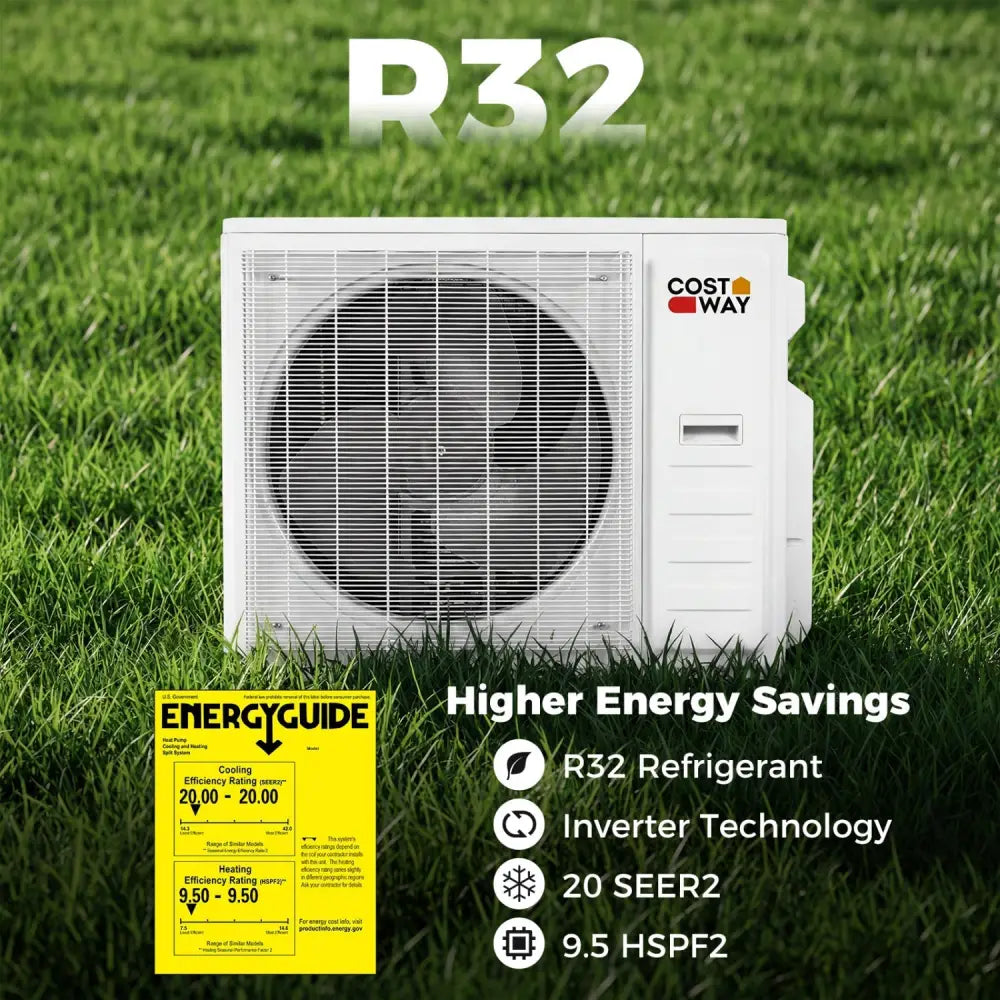

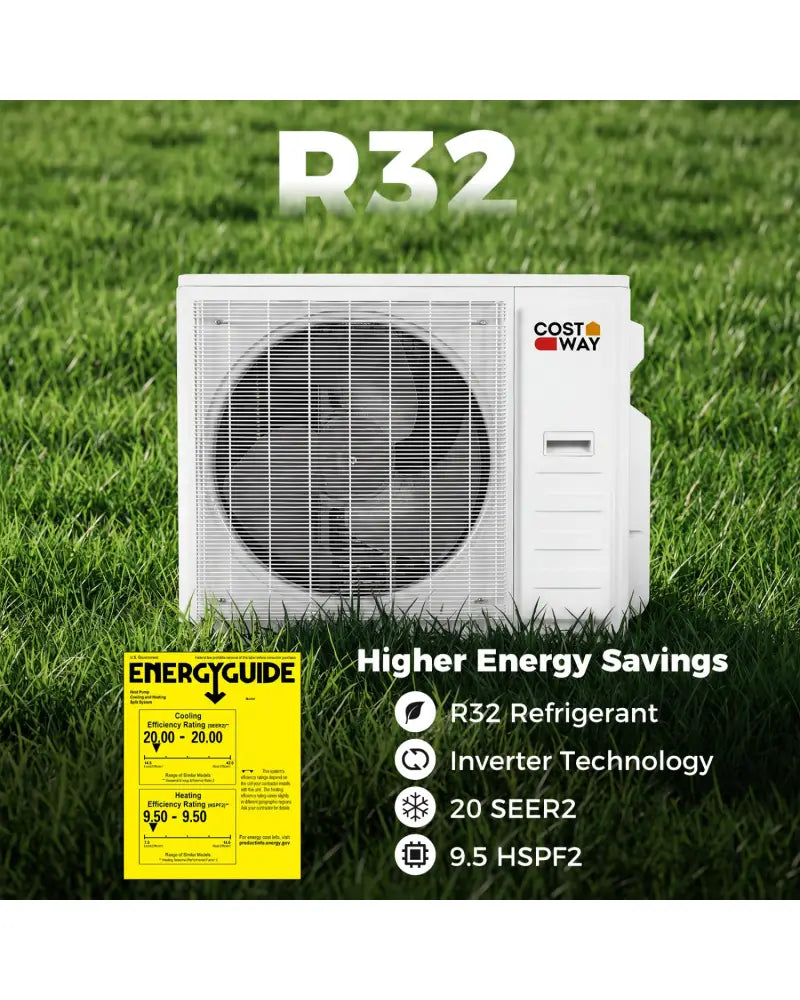

Higher Energy Savings: With a 20 SEER2 rating this mini split ac unit is built to offer powerful heating and cooling with energy-smart control. The advanced inverter technology helps reduce energy waste while keeping set temperatures stable.

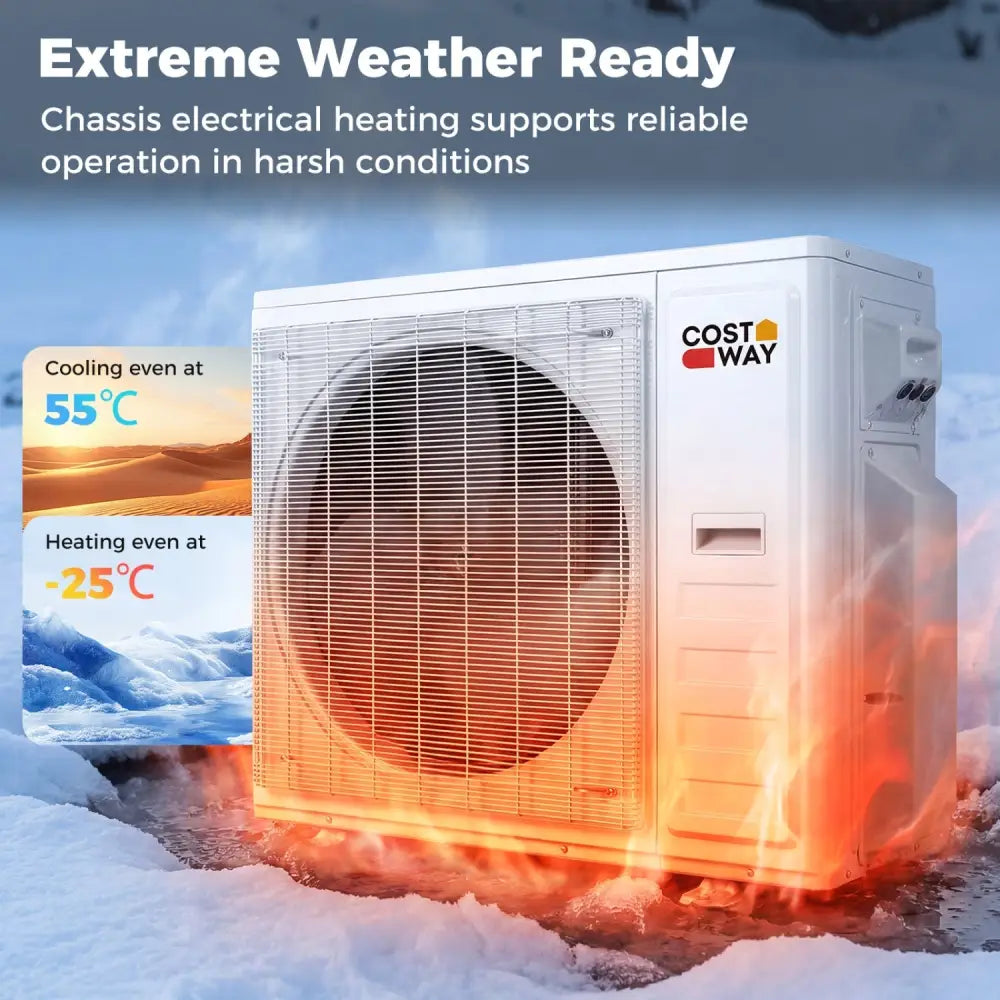

Extreme Weather Ready: The outdoor unit is equipped with chassis electrical heating which supports reliable operation in harsh conditions cooling even at 55„ƒ and heating even at -25„ƒ.

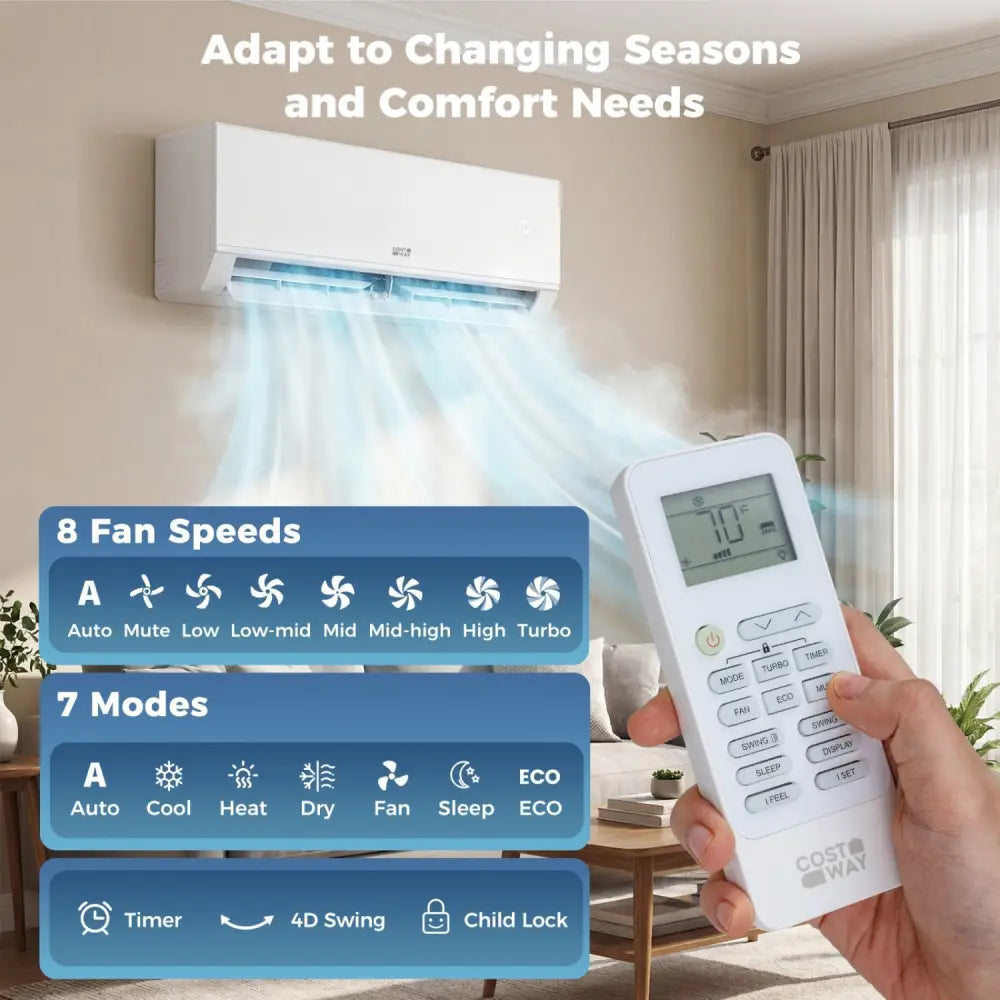

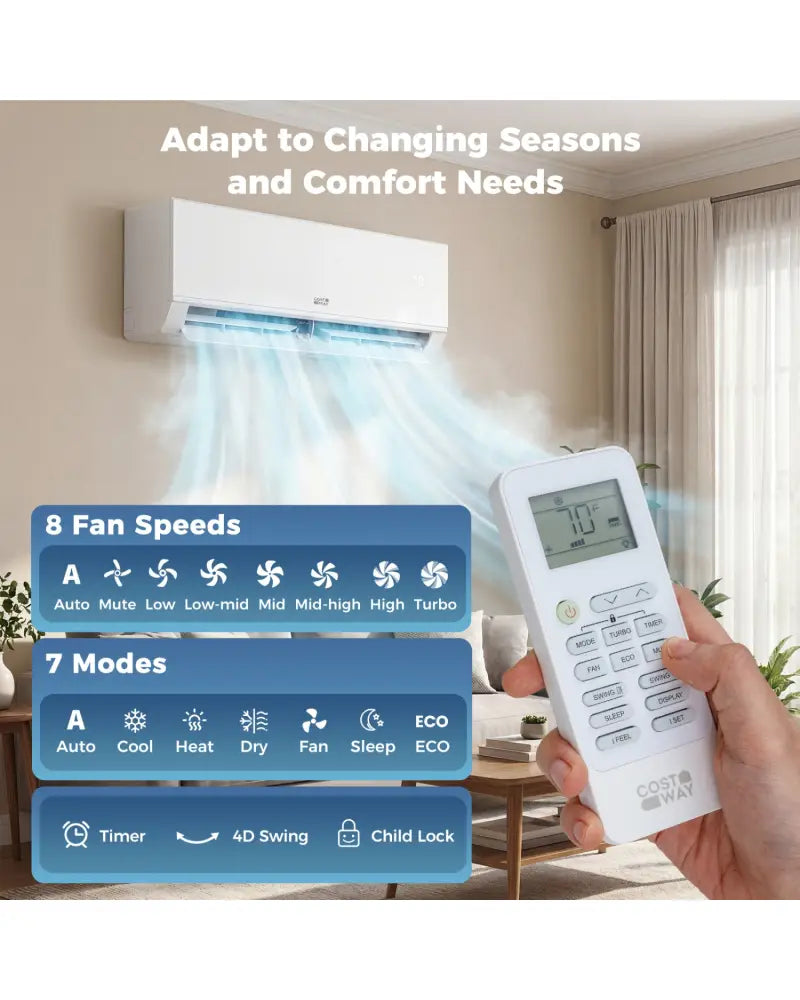

Smart Control & Modes: This wifi enabled mini split air conditioner and heater works with Alexa and Google assistant plus a remote control for quick access. 7 modes (auto cool heat dry fan ECO sleep) 8 fan speeds (auto mute low low-mid mid mid-high high turbo) 24-hour timer and child lock extend comfort to daily use.
Low Noise & Easy Maintenance: This multi zone ac with heat pump operates quietly creating minimal noise as low as 28 dB during operation that enables you to enjoy all-day comfort without distractions. Maintenance is a breeze thanks to the self-clean function and washable filters. Note: Professional licensed HVAC technician installation is recommended.

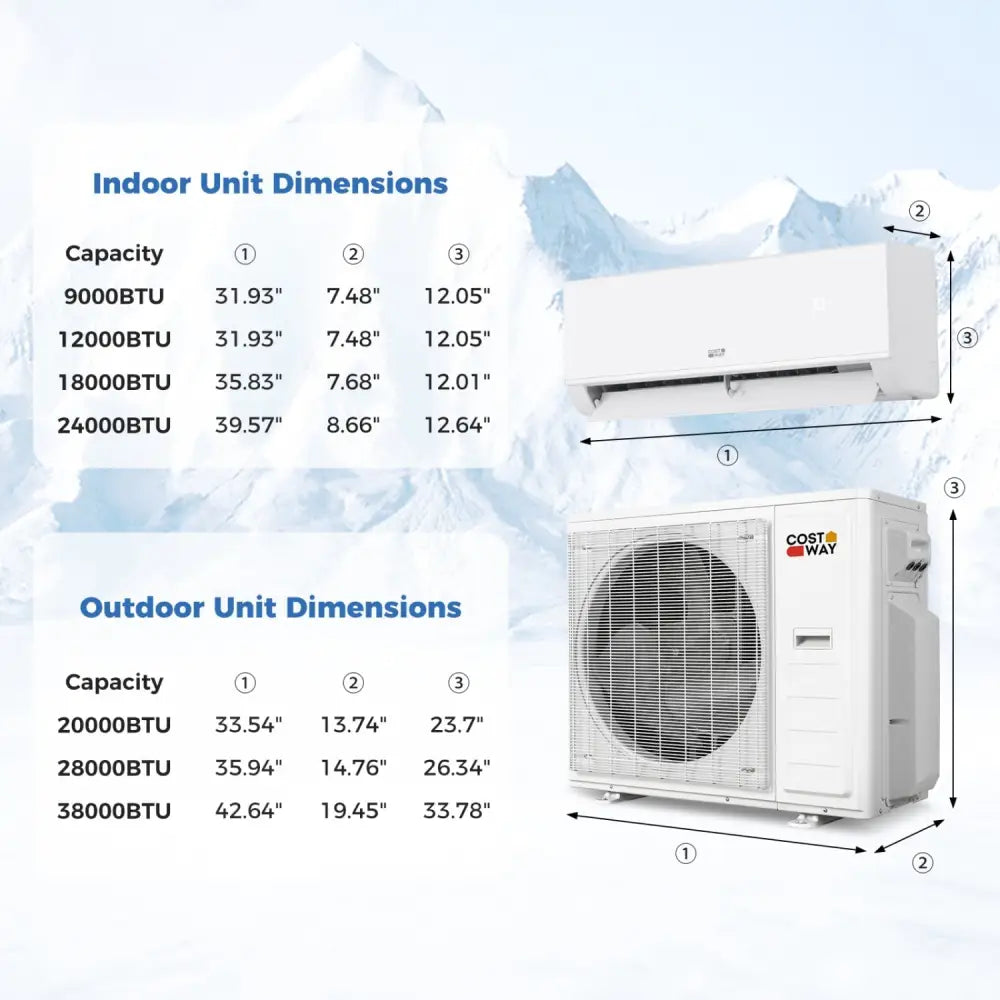

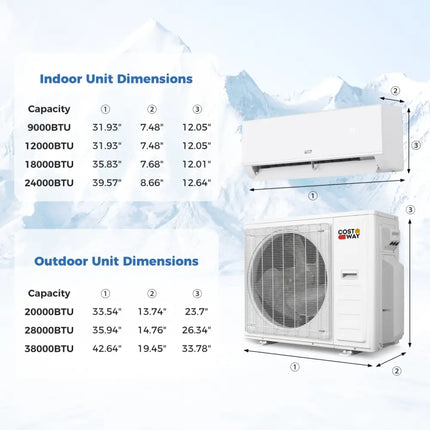

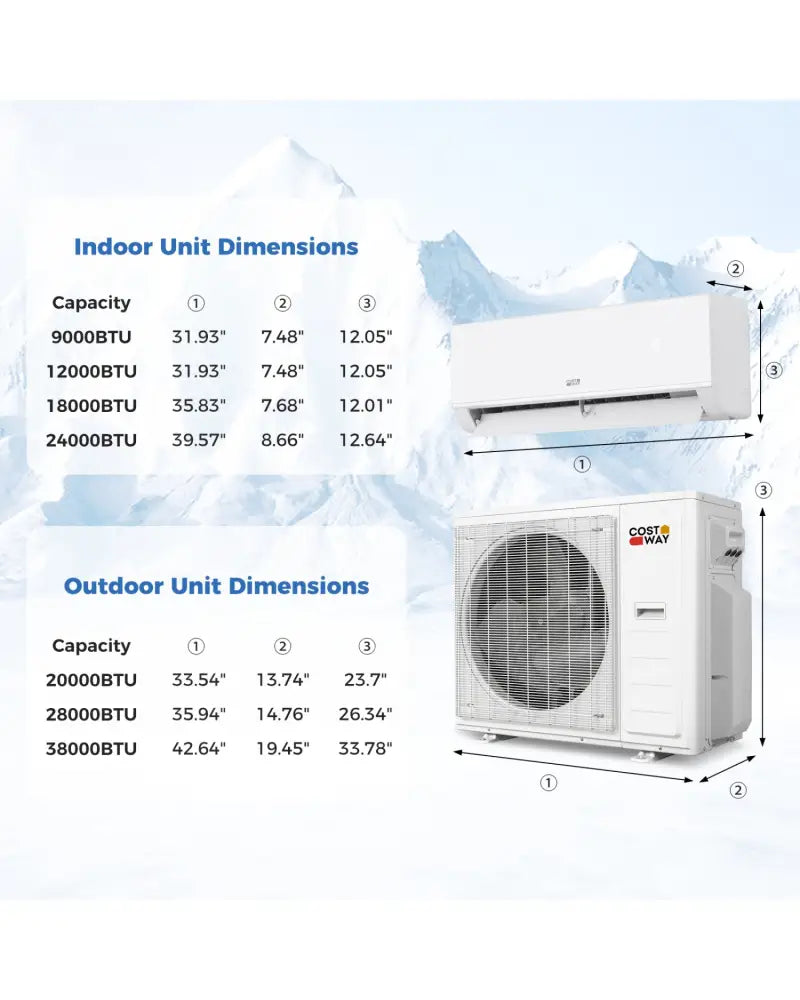

| Outdoor Unit Dimensions | . |
| 20K | 33.54" x 13.74" x 23.7" (L x W x H) |
| 28K | 35.94" x 14.76" x 26.34" (L x W x H) |
| 38K | 42.64" x 19.45" x 33.78" (L x W x H) |
| Multi Zone Combination | 3 |
| Voltage | 208/230V |
| Frequency | 60Hz |
| Temperature Setting Range | 16„ƒ~31„ƒ |
| Refrigerant | R32 |
| Indoor Unit Noise Level | 28 dB |
| Max Remote Control Distance | 39.5 ft |
| Coverage Area | . |
| 9k | 450 Sq.Ft |
| 12k | 750 Sq.Ft |
| 18k | 1250 Sq.Ft |
| 24k | 1500 Sq.Ft |
| Dehumidification Capacity | . |
| 9k | 66 Pints/Day |
| 12k | 81.2 Pints/Day |
| 18k | 111.6 Pints/Day |
| 24k | 131.9 Pints/Day |
| Maximum Air Flow Volume | . |
| 9k | 335 CFM |
| 12k | 342 CFM |
| 18k | 617 CFM |
| 24k | 847 CFM |
| SEER2 | . |
| 20k | 23 |
| 28k | 20 |
| 38k | 20 |
| HSPF2 | . |
| 20k | 9.5 |
| 28k | 9.5 |
| 38k | 9.5 |
| Diameter of Liquid Pipe | 1/4" |
| Diameter of Gas Pipe | . |
| 9k | 3/8" |
| 12k | 3/8" |
| 18k | 3/8" |
| 24k | 1/2" |
| Net Weight of 38K(Outdoor Unit) | 148.8 lbs |
| Net Weight of 9K(Indoor Unit) | 19.8 lbs |
| Net Weight of 12K | 19.8 lbs |
| Net Weight of 18K | 20.9 lbs |
| Net Weight of 24K | 27.6 lbs |
| Box Qty | 5 |
| Is Assembly Required | Yes |

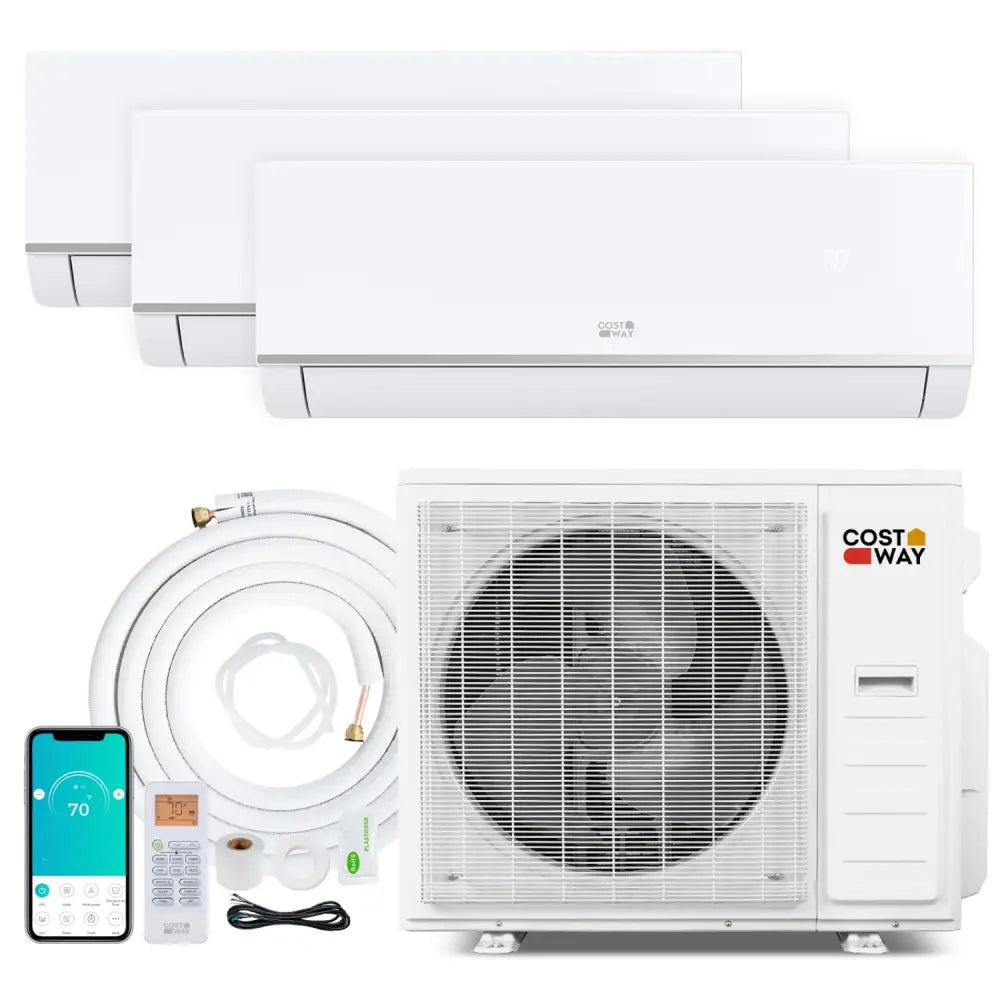

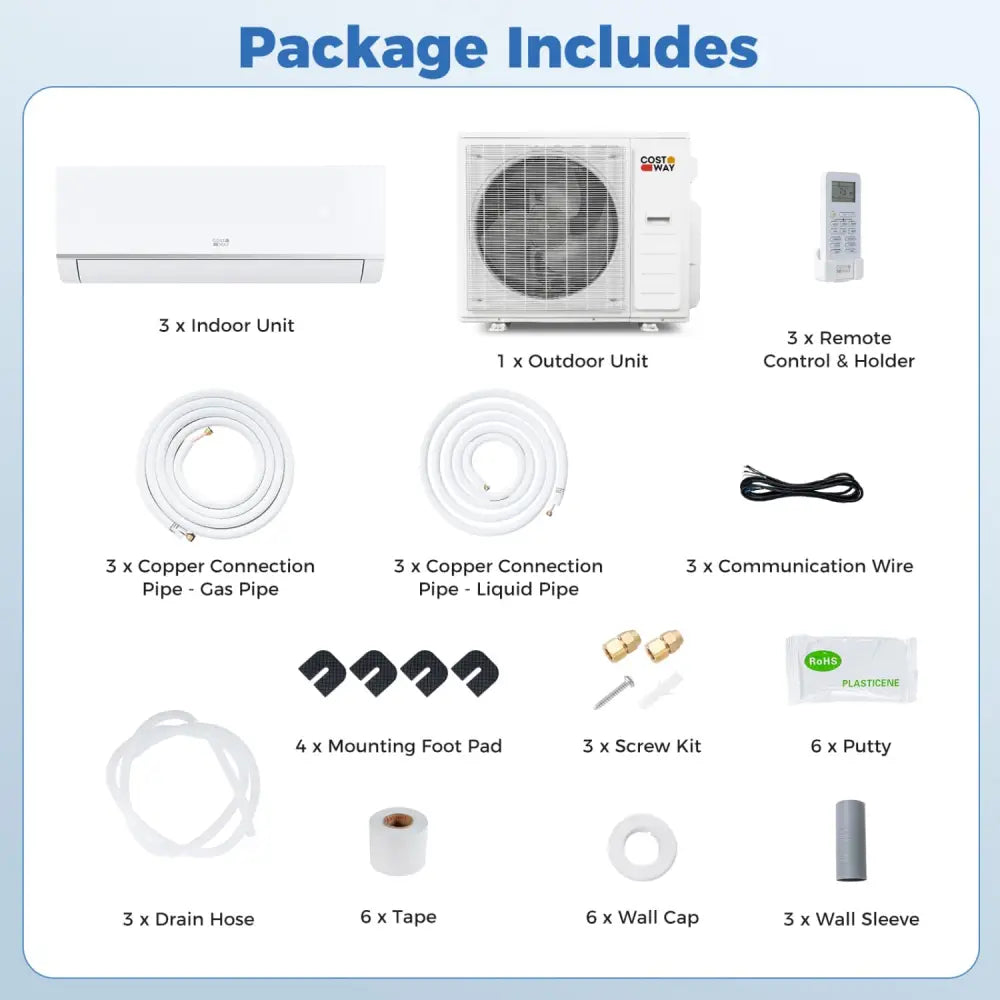

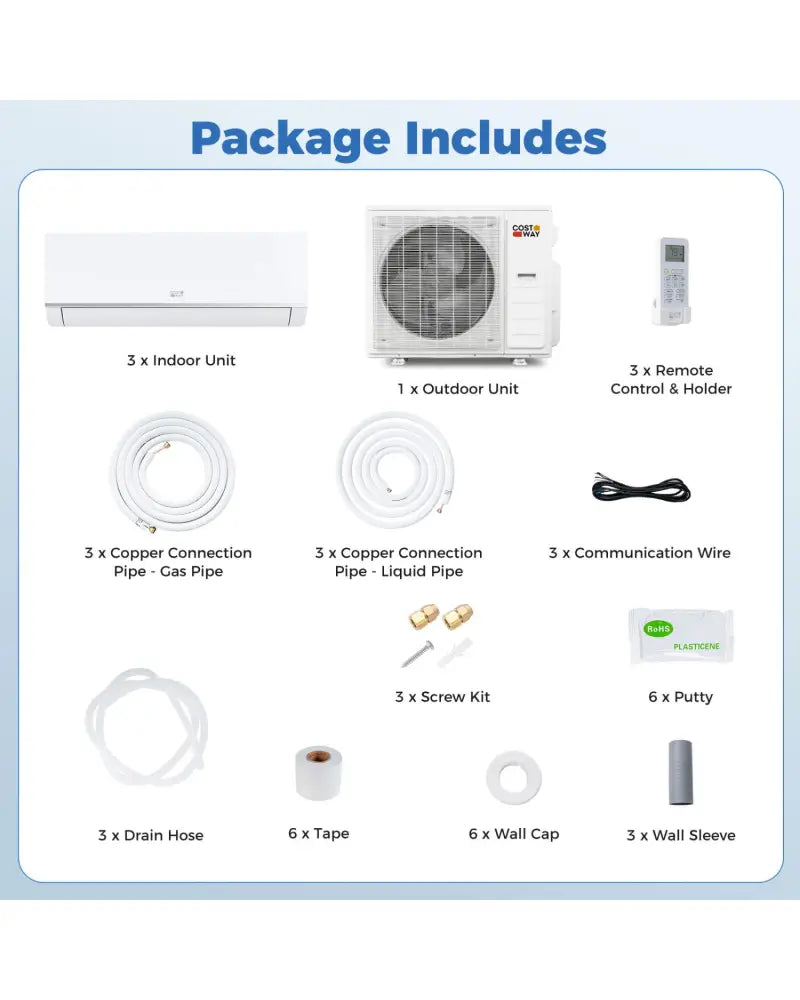

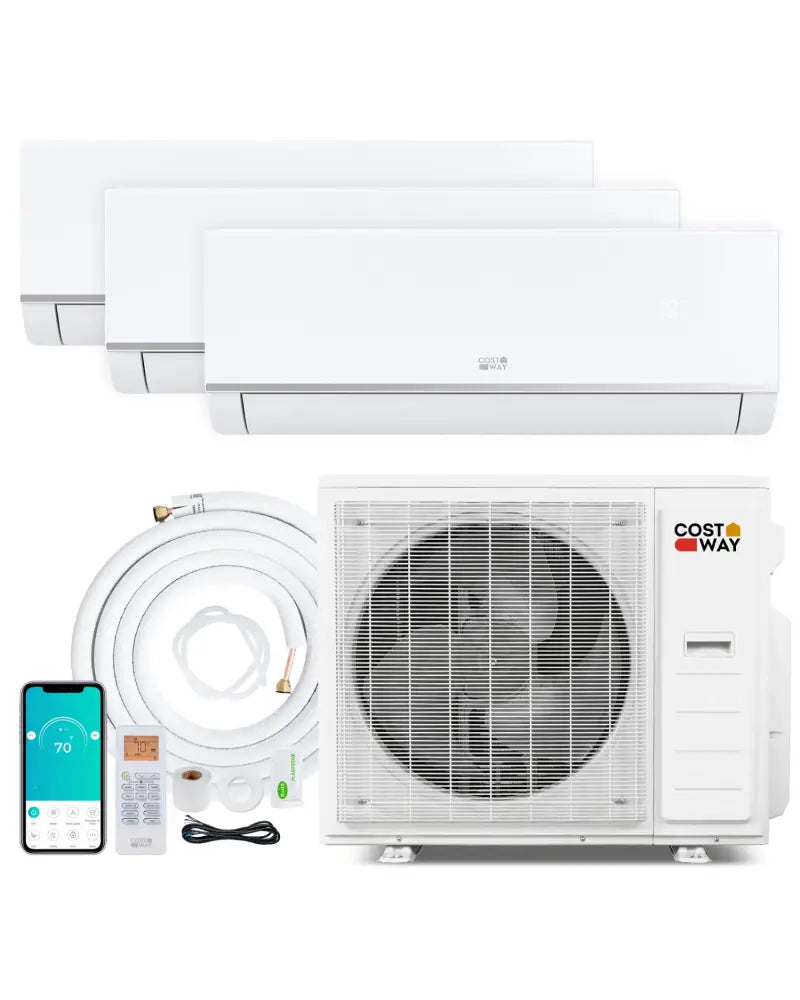

| Package Includes | 1 x Outdoor Unit 3 x Indoor Unit |
| 3 x Copper Connection Pipe - Gas Pipe | 3 x Copper Connection Pipe - Liquid Pipe |
| 3 x Communication Wire 3 x Drain Hose | 3 x Remote Control & Holder 3 x Wall Sleeve |
| 6 x Wall Cap 6 x Tape 6 x Putty | 3 x Screw Kit 4 x Mounting Foot Pad 5 x User Guide |
